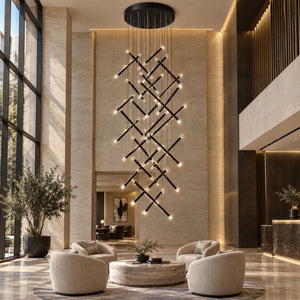

Apex Modern Staircase Chandelier

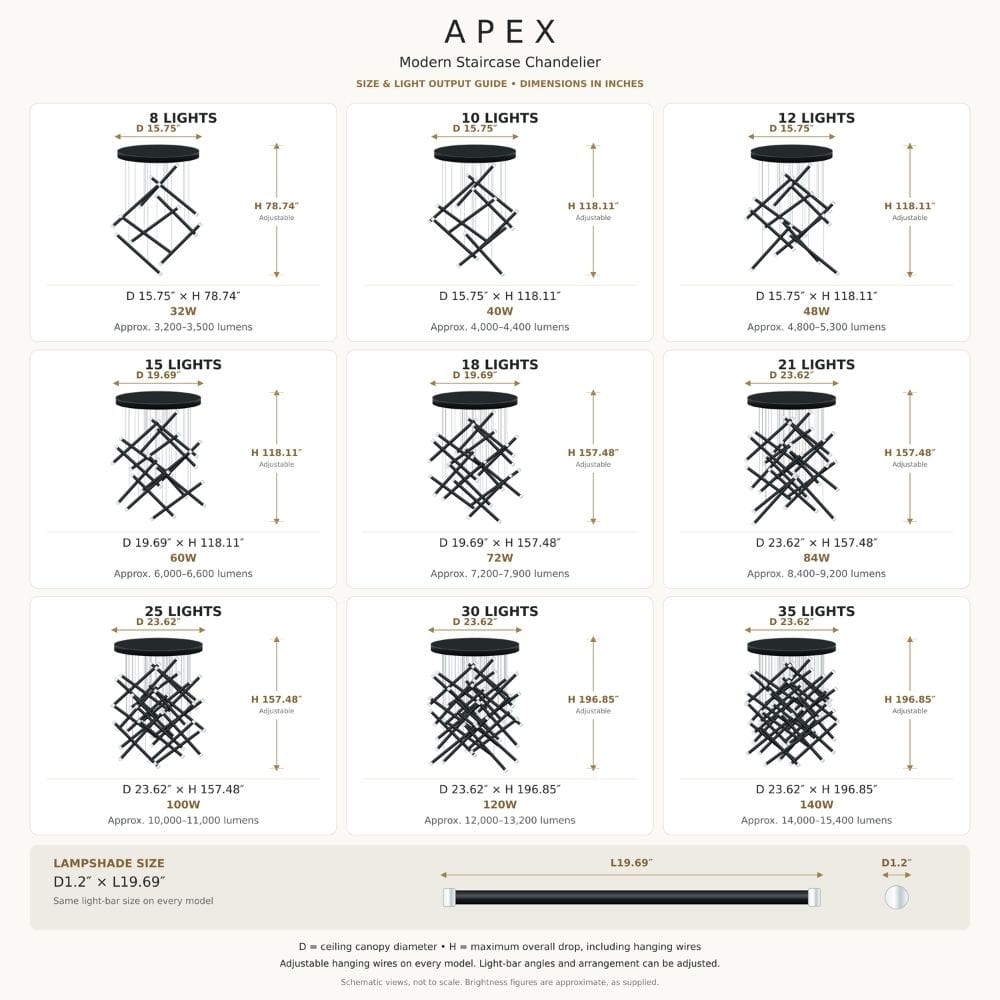

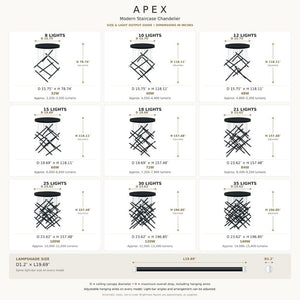

8 Lights:

• Size: D15.75" (40 cm) × H78.74" (200 cm)
• Wattage: 32W
• Brightness: approx. 3,200–3,500 lumens

10 Lights:

• Size: D15.75" (40 cm) × H118.11" (300 cm)
• Wattage: 40W
• Brightness: approx. 4,000–4,400 lumens

12 Lights:

• Size: D15.75" (40 cm) × H118.11" (300 cm)
• Wattage: 48W
• Brightness: approx. 4,800–5,300 lumens

15 Lights:

• Size: D19.69" (50 cm) × H118.11" (300 cm)
• Wattage: 60W
• Brightness: approx. 6,000–6,600 lumens

18 Lights:

• Size: D19.69" (50 cm) × H157.48" (400 cm)
• Wattage: 72W
• Brightness: approx. 7,200–7,900 lumens

21 Lights:

• Size: D23.62" (60 cm) × H157.48" (400 cm)
• Wattage: 84W
• Brightness: approx. 8,400–9,200 lumens

25 Lights:

• Size: D23.62" (60 cm) × H157.48" (400 cm)
• Wattage: 100W
• Brightness: approx. 10,000–11,000 lumens

30 Lights:

• Size: D23.62" (60 cm) × H196.85" (500 cm)
• Wattage: 120W
• Brightness: approx. 12,000–13,200 lumens

35 Lights:

• Size: D23.62" (60 cm) × H196.85" (500 cm)
• Wattage: 140W
• Brightness: approx. 14,000–15,400 lumens

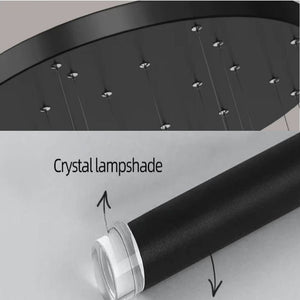

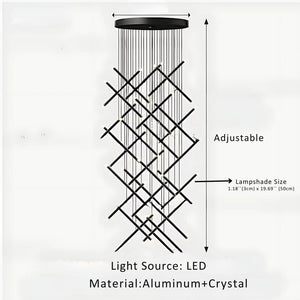

Lampshade Size:

D1.2" (3 cm) × L19.69" (50 cm)

General Specifications:

• Hanging Wire: Adjustable
• Light Source: LED Bulbs (4W per light, included)
• Dimmable: Upon Request
• Body Material: Stainless Steel
• Lampshade Material: Crystal
• Style: Modern
• Installation Type: Flush Mount
• Item Type: Chandelier, Ceiling Light
• Warranty: 2 years
• Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, RoHS, SAA, VDE
• Ideal For: Staircase, duplex/villa foyer, high-ceiling entryway, living room, hotel lobbies

• Installation: Hardwired. Licensed electrician recommended. Mount the canopy to a junction box rated for the fixture weight; the 25 to 35-light versions need a support bracket into ceiling framing and lift access. Two people are needed for clusters of 12 lights and up.
• Wire adjustment: Each wire adjusts at the canopy and can be shortened on site. Set and lock every wire length and bar angle before energizing.
• Lighting: 4W LED bulbs included, one per light; replace with LEDs of the same base, wattage, and color temperature. Dimmable version available upon request.
• Cleaning: Power off at the breaker. Wipe the bars with a dry microfiber cloth and the crystal end caps with a lightly damp cloth, drying immediately. Avoid abrasive or acidic cleaners on the finish. Clean tall installations from a landing or with an extension pole.
• Checkups: Re-check the canopy fixing and each wire lock one week after installation, then annually.

Apex scales by bar count, canopy diameter, and drop length, so ceiling height sets the drop, opening width sets the canopy, and room area sets the number of bars. Then choose the finish for the interior and the color temperature at order.

Light count guide (how many bars do you need):

• 8 Lights, 15.75" (40cm) canopy, 78.74" (200cm) drop, 3,200-3,500 lumens: Round tables 42"-54" (107-137cm), single-story entryways, and living rooms with 10-14 ft (3-4.3m) ceilings; about 160-215 sq ft (15-20 m²).
• 10 or 12 Lights, 15.75" (40cm) canopy, 118.11" (300cm) drop, 4,000-5,300 lumens: Two-story stairwells 4-6 ft (1.2-1.8m) wide with 16-18 ft (4.9-5.5m) ceilings; about 215-270 sq ft (20-25 m²).
• 15 Lights, 19.69" (50cm) canopy, 118.11" (300cm) drop, 6,000-6,600 lumens: Two-story foyers 8' × 8' (2.4 × 2.4m) with 18-20 ft (5.5-6.1m) ceilings; the smallest size that fills a foyer on its own.
• 18 Lights, 19.69" (50cm) canopy, 157.48" (400cm) drop, 7,200-7,900 lumens: Stairwells 6 ft+ (1.8m+) wide with 20-24 ft (6.1-7.3m) ceilings.
• 21 or 25 Lights, 23.62" (60cm) canopy, 157.48" (400cm) drop, 8,400-11,000 lumens: Foyers 10' × 10' (3 × 3m) and villa entrance halls with 20-24 ft (6.1-7.3m) ceilings; choose 25 for a denser lattice.
• 30 or 35 Lights, 23.62" (60cm) canopy, 196.85" (500cm) drop, 12,000-15,400 lumens: Three-story stairwells, hotel lobbies, and atriums with 24 ft+ (7.3m+) ceilings.

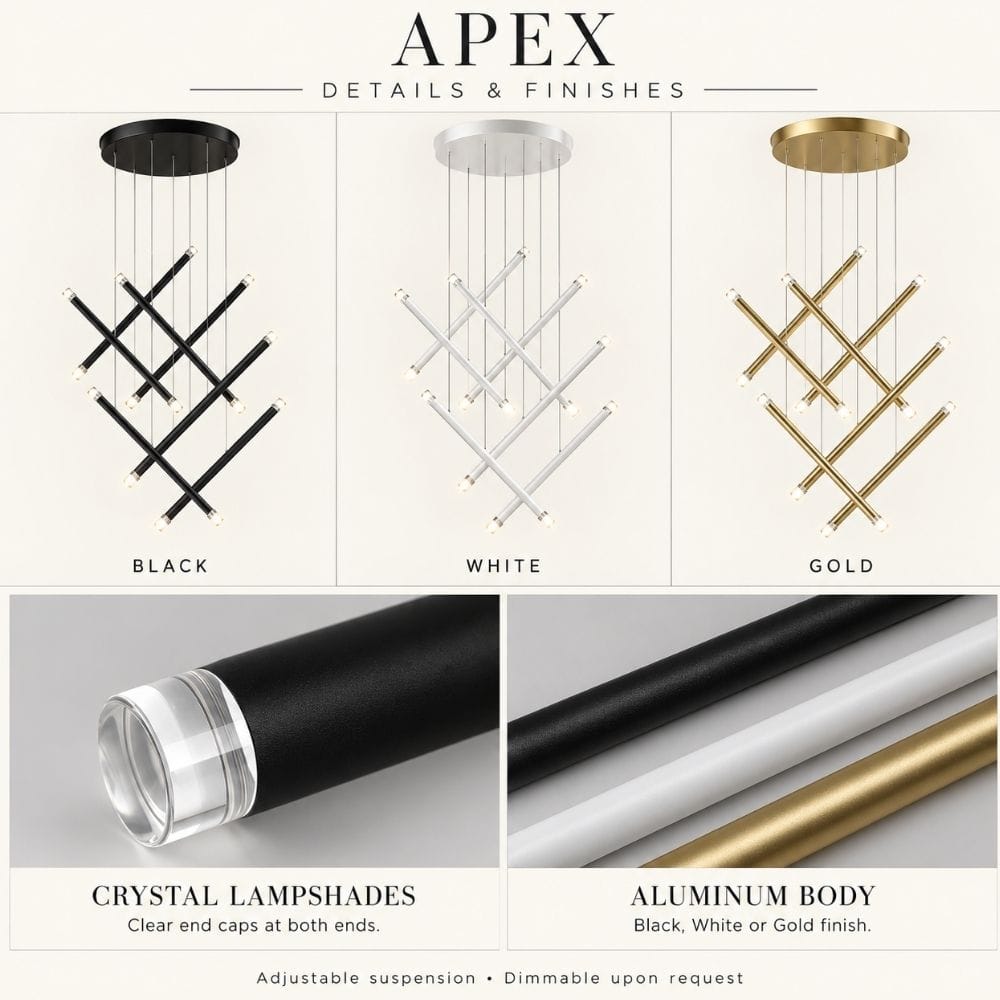

Finish guide (black, white, or gold):

• Black: The sharpest lattice against pale walls and stairwells; suits modern, industrial, and monochrome interiors.
• White: Nearly disappears against white walls when off, leaving only the crystal points when on; the choice for minimalist and Scandinavian spaces.
• Gold: Warms cream, wood, and marble interiors and reads as a warm accent from the entry; matches brass rails and hardware.

Light color guide:

• Confirm Warm White or Cool White at order. Warm White suits residential stairwells, foyers, and dining tables and pairs with the gold finish; Cool White suits commercial lobbies and modern white or black schemes.
• Matching: Keep the bars at the same color temperature as sconces and recessed lights visible from the staircase.
• Dimming: Order the dimmable version for foyers and living rooms where the cluster is the main light, and pair it with an LED-rated dimmer.

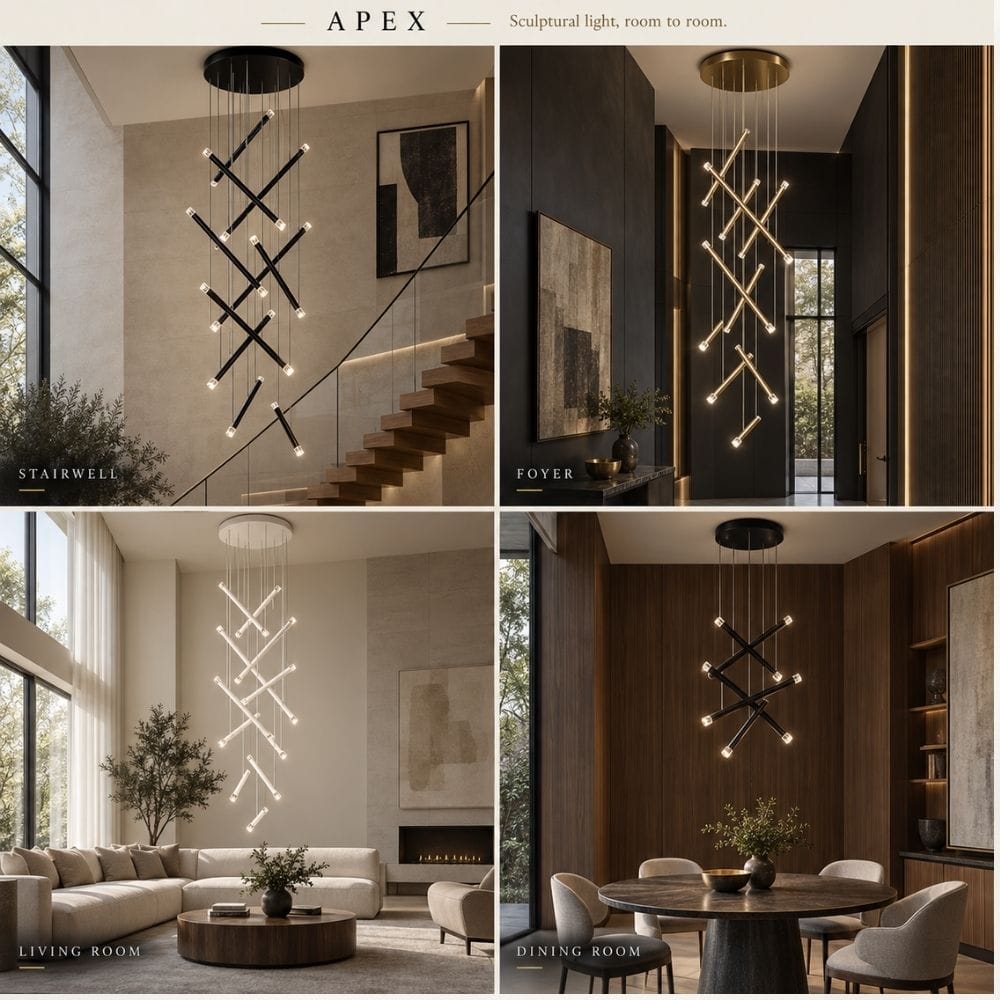

By placement:

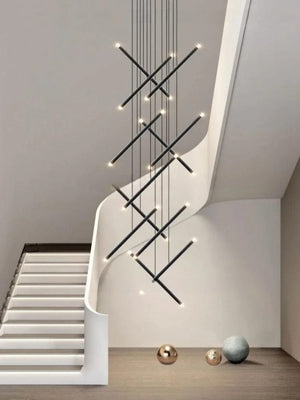

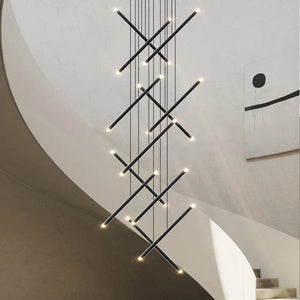

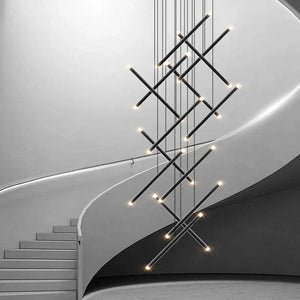

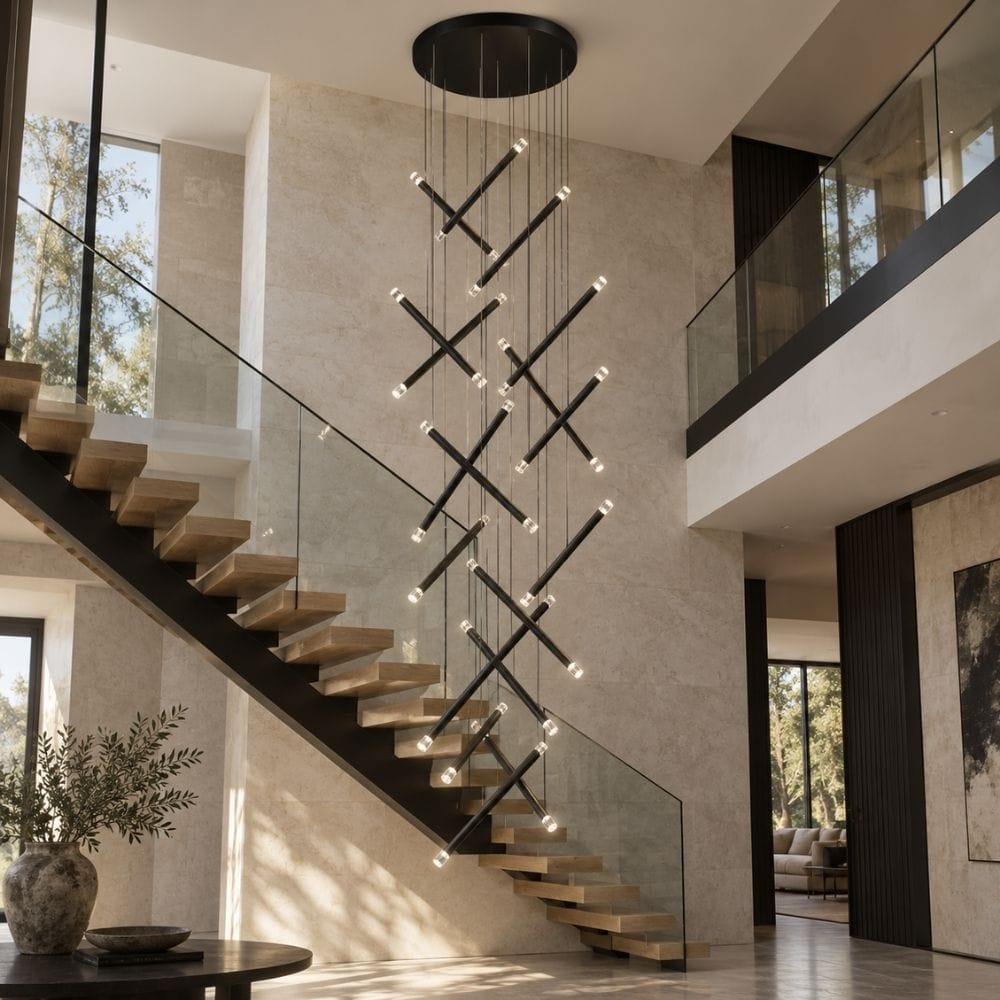

• Staircase / stairwell: 10 to 18 Lights for two-story wells; 21 Lights and up for three-story and wider wells. Center the canopy in the open well and angle the bars to follow the stair's direction.

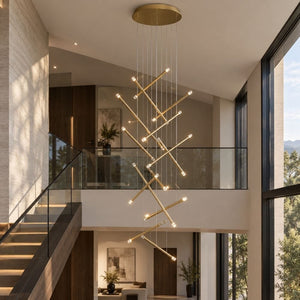

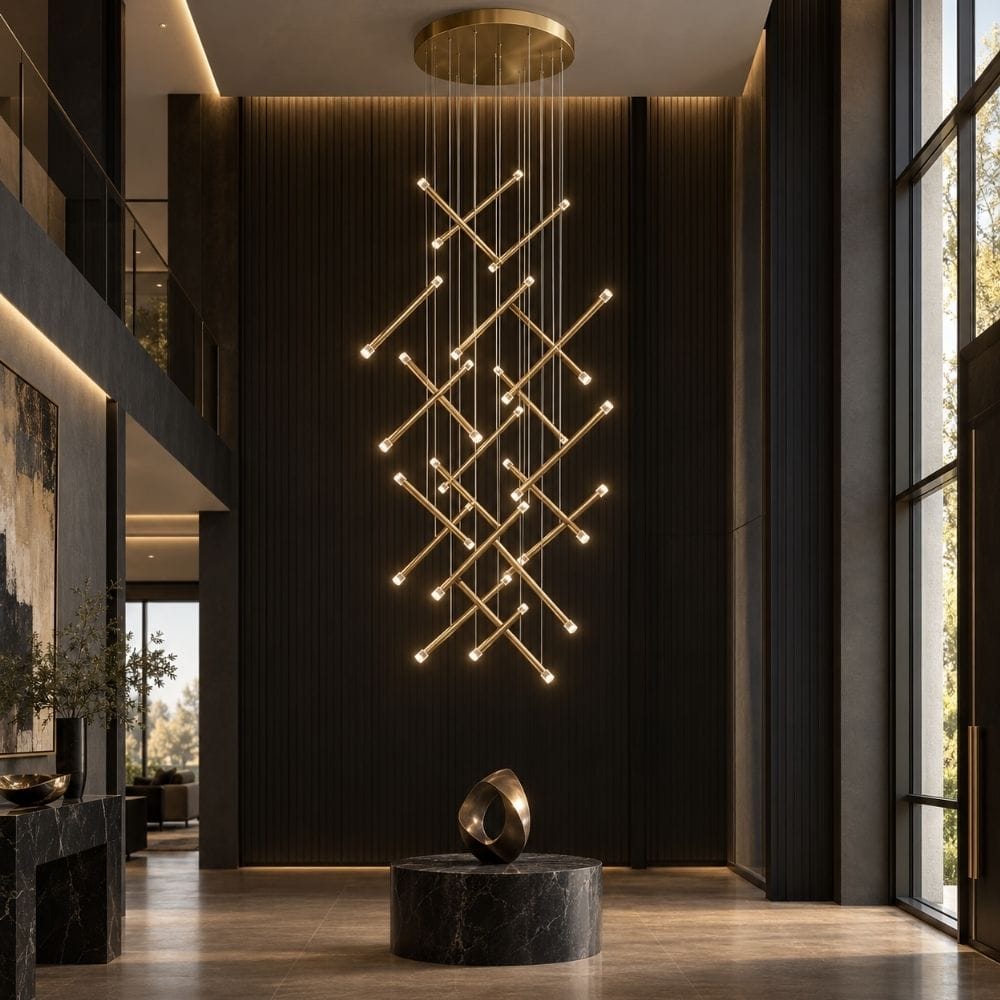

• Two-story foyer: 15 to 25 Lights centered in the opening so the lattice reads from the entry and the landing.

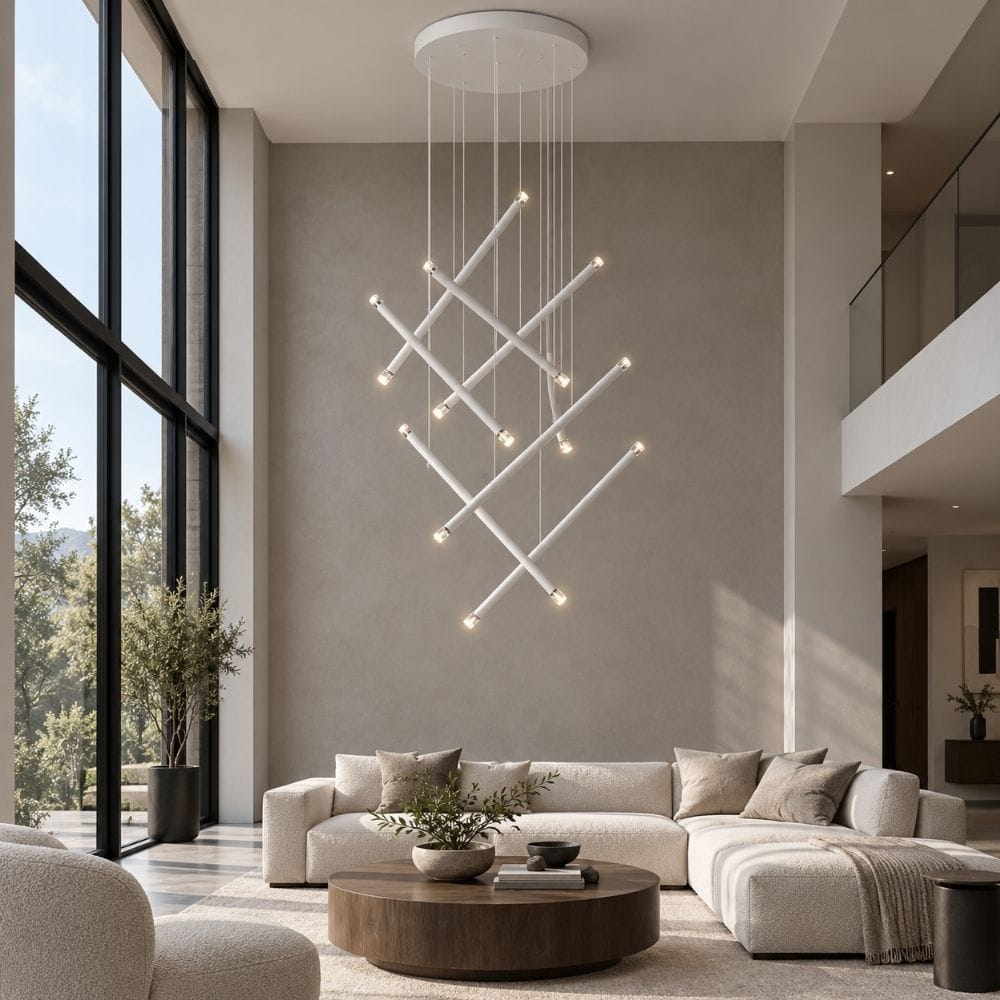

• High-ceiling living room: 8 to 15 Lights over a seating group in rooms with 12 ft+ (3.7m+) ceilings.

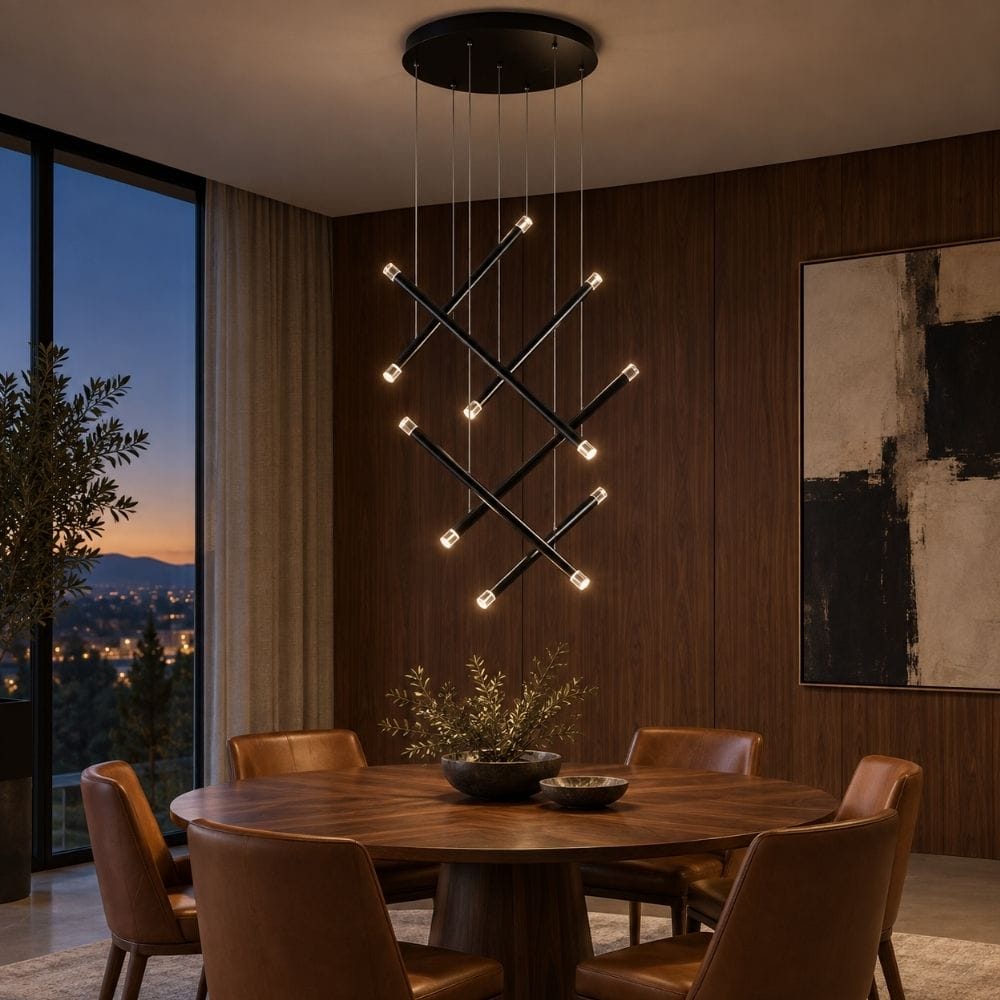

• Round dining table: 8 Lights at about two-thirds of the table diameter, set to a shallow stagger so the end-cap light lands on the table.
• Entryway (single-story): 8 Lights with wires shortened to a 36"-48" (91-122cm) drop.
• Hotel lobbies: 30 or 35 Lights as a centerpiece, or several 12 to 15 Light clusters in a row.
• Sloped ceiling: All sizes mount on angled ceilings; the wires hang vertically.

Hanging height rules by room (practical)

• Stairwell: Keep the lowest bar at least 7 ft (2.13m) above the treads it hangs over and 6" (15cm) clear of the rail; set the highest bars near the top third of the well.
• Foyer: Maintain 7 ft (2.13m) of floor clearance; in two-story spaces, spread the bars so the lattice's center sits level with the second-floor line.
• Round dining table: Set the lowest bar 30-36" (76-91cm) above the tabletop with a 10 ft ceiling; add 3" (7.6cm) per additional foot.
• Living room: Keep the lowest bar 7 ft (2.13m) above walking areas unless it hangs over a table.

Placement tips that prevent common mistakes

• Drop calculation: The listed height is the maximum with wires fully extended; every wire shortens on site. Each bar is 19.69" (50cm) long, so allow for its angle when planning the lowest point.
• Bar arrangement: Hang the bars at crossing angles and staggered heights; bars set parallel or at one level lose the lattice effect the fixture is designed for.
• Wire pairs: Each bar hangs on two wires whose length difference sets its angle; set every pair before energizing so the bars do not shift.
• Proportion check: Keep the canopy diameter under one-third of the stairwell or foyer opening width, and remember the crossed bars extend 10"-20" (25-50cm) beyond the canopy edge.
• Air movement: Fine wires sway near HVAC vents or open doors; keep the canopy 3 ft (0.9m) or more from vents.
