Grace Spiral Staircase Chandelier

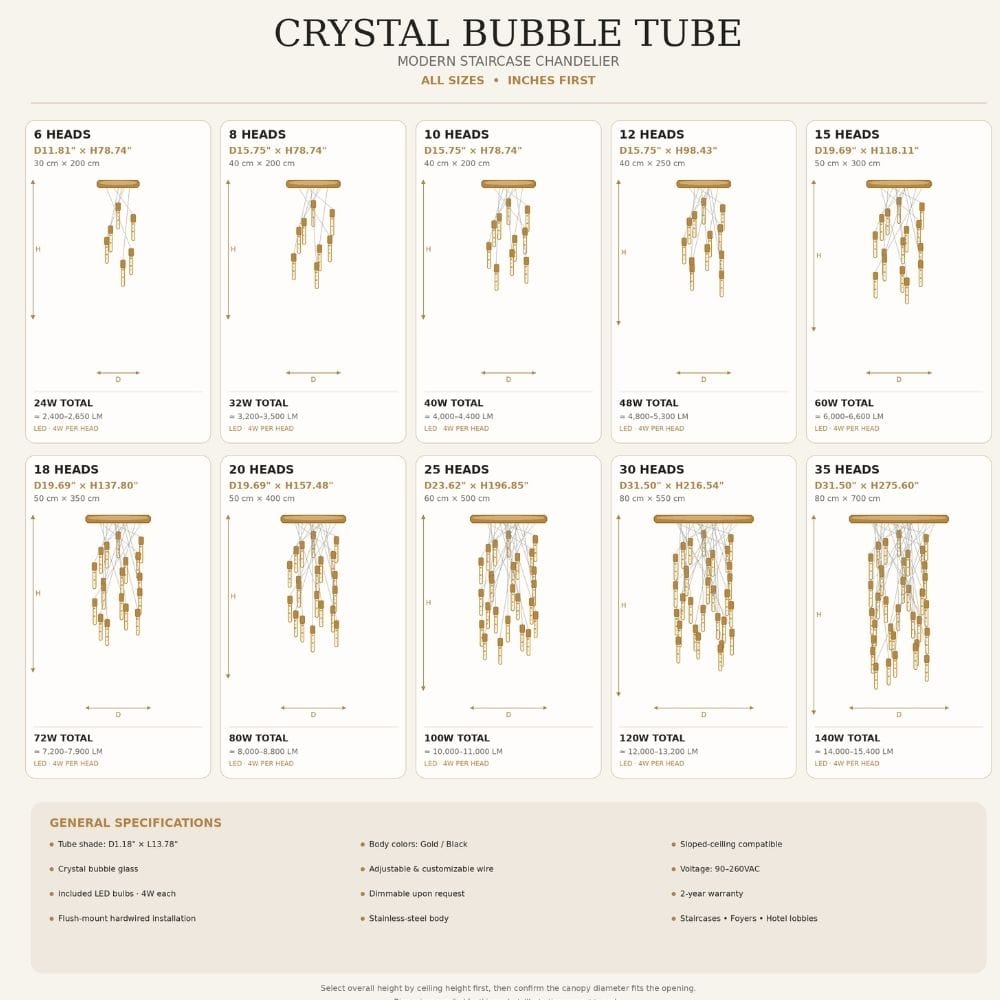

6 Heads:

• Size: D11.81" (30 cm) × H78.74" (200 cm)
• Lampshade Size: D1.18" (3 cm) × L13.78" (35 cm)
• Wattage: 24W
• Brightness: approx. 2,400–2,650 lumens

8 Heads:

• Size: D15.75" (40 cm) × H78.74" (200 cm)
• Lampshade Size: D1.18" (3 cm) × L13.78" (35 cm)
• Wattage: 32W
• Brightness: approx. 3,200–3,500 lumens

10 Heads:

• Size: D15.75" (40 cm) × H78.74" (200 cm)
• Lampshade Size: D1.18" (3 cm) × L13.78" (35 cm)
• Wattage: 40W
• Brightness: approx. 4,000–4,400 lumens

12 Heads:

• Size: D15.75" (40 cm) × H98.43" (250 cm)
• Lampshade Size: D1.18" (3 cm) × L13.78" (35 cm)
• Wattage: 48W
• Brightness: approx. 4,800–5,300 lumens

15 Heads:

• Size: D19.69" (50 cm) × H118.11" (300 cm)
• Lampshade Size: D1.18" (3 cm) × L13.78" (35 cm)
• Wattage: 60W
• Brightness: approx. 6,000–6,600 lumens

18 Heads:

• Size: D19.69" (50 cm) × H137.80" (350 cm)
• Lampshade Size: D1.18" (3 cm) × L13.78" (35 cm)
• Wattage: 72W
• Brightness: approx. 7,200–7,900 lumens

20 Heads:

• Size: D19.69" (50 cm) × H157.48" (400 cm)
• Lampshade Size: D1.18" (3 cm) × L13.78" (35 cm)
• Wattage: 80W
• Brightness: approx. 8,000–8,800 lumens

25 Heads:

• Size: D23.62" (60 cm) × H196.85" (500 cm)
• Lampshade Size: D1.18" (3 cm) × L13.78" (35 cm)
• Wattage: 100W
• Brightness: approx. 10,000–11,000 lumens

30 Heads:

• Size: D31.50" (80 cm) × H216.54" (550 cm)
• Lampshade Size: D1.18" (3 cm) × L13.78" (35 cm)
• Wattage: 120W
• Brightness: approx. 12,000–13,200 lumens

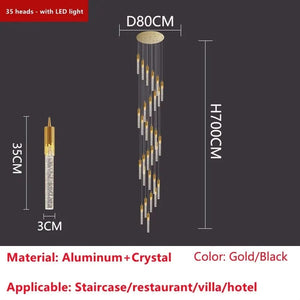

35 Heads:

• Size: D31.50" (80 cm) × H275.60" (700 cm)
• Lampshade Size: D1.18" (3 cm) × L13.78" (35 cm)
• Wattage: 140W
• Brightness: approx. 14,000–15,400 lumens

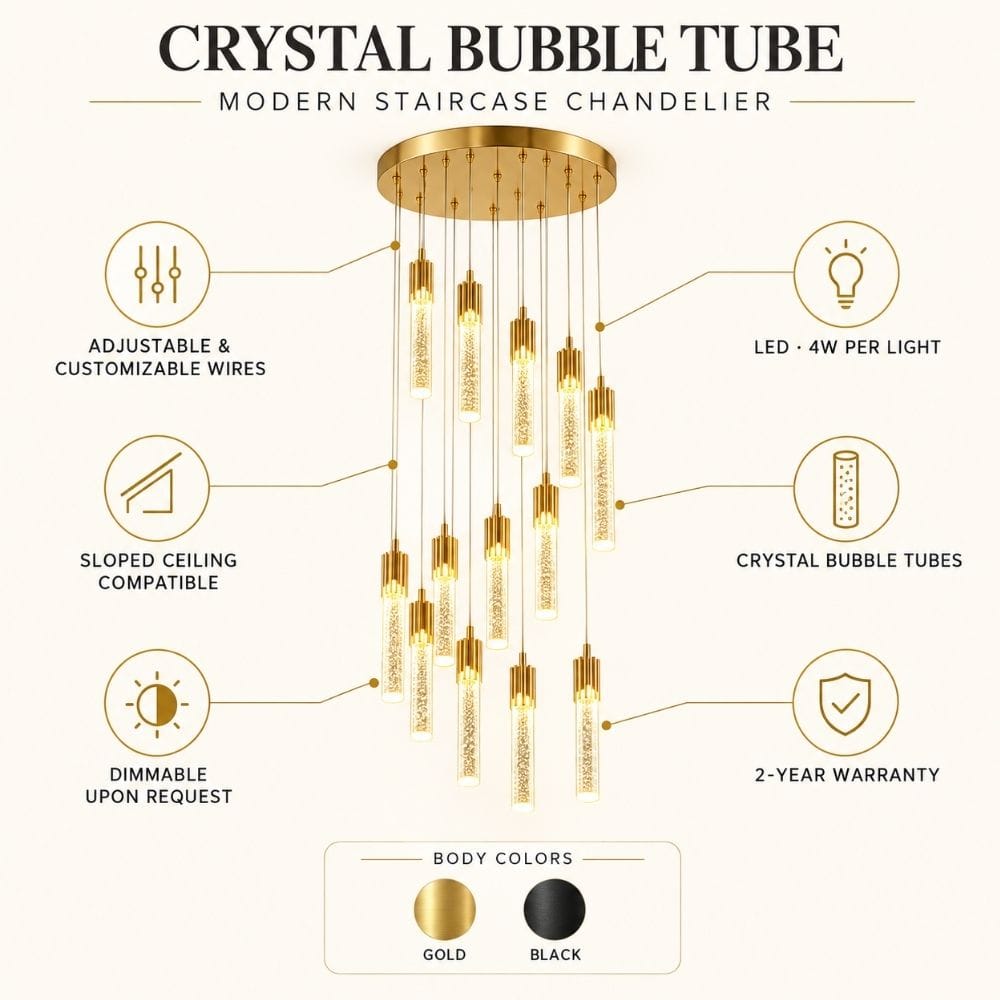

General Specifications:

• Hanging Wire: Adjustable and Customizable
• Light Source: LED Bulbs (approx. 4W per light, included)
• Dimmable: Upon Request
• Body Material: Stainless Steel
• Lampshade Material: Crystal
• Style: Modern
• Installation Type: Flush Mount
• Item Type: Chandelier, Pendant Light, Ceiling Light
• Warranty: 2 years
• Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, RoHS, SAA, VDE
• Ideal For: Staircase, duplex/villa foyer, high-ceiling entryway, living room, hotel lobbies

Installation: Hardwired. Licensed electrician recommended. Mount the canopy to a junction box rated for the fixture weight; the 25 to 35-head versions need a support bracket into ceiling framing and lift access. Two people are needed for clusters of 12 heads and up.

Wire adjustment: Each wire adjusts at the canopy and can be shortened on site; custom lengths are available at order. Set and lock every wire before energizing.

Lighting: 4W LED bulbs included, one per tube; replace with LEDs of the same base, wattage, and color temperature. Dimmable version available upon request with an LED-rated dimmer.

Cleaning: Power off at the breaker. Wipe the crystal tubes with a dry microfiber cloth; for smudges, use a lightly damp cloth and dry immediately. Wipe the caps with a soft dry cloth; avoid abrasive or acidic cleaners on plated finishes. Clean tall installations from a landing or with an extension pole.

Checkups: Re-check the canopy fixing and each wire lock one week after installation, then annually.

Grace scales by tube count, canopy diameter, and drop length, so ceiling height sets the drop, opening width sets the canopy, and the number of tubes sets how dense the spiral reads. Then choose gold or black caps and the bulb color temperature.

Light count guide (how many tubes do you need):

• 6 Heads, 11.81" (30cm) canopy, 78.74" (200cm) drop, 2,400-2,650 lumens: Single-story entryways and living rooms with 10-14 ft (3-4.3m) ceilings; accent lighting.
• 8 or 10 Heads, 15.75" (40cm) canopy, 78.74" (200cm) drop, 3,200-4,400 lumens: Single-story stairwells and entry halls with 12-14 ft (3.7-4.3m) ceilings.
• 12 Heads, 15.75" (40cm) canopy, 98.43" (250cm) drop, 4,800-5,300 lumens: Two-story stairwells 4-6 ft (1.2-1.8m) wide with 16-18 ft (4.9-5.5m) ceilings.
• 15 Heads, 19.69" (50cm) canopy, 118.11" (300cm) drop, 6,000-6,600 lumens: Two-story foyers 8' × 8' (2.4 × 2.4m) with 18-20 ft (5.5-6.1m) ceilings; the smallest size that fills a foyer on its own.
• 18 or 20 Heads, 19.69" (50cm) canopy, 137.80"-157.48" (350-400cm) drop, 7,200-8,800 lumens: Stairwells 6 ft+ (1.8m+) wide with 20-24 ft (6.1-7.3m) ceilings.
• 25 Heads, 23.62" (60cm) canopy, 196.85" (500cm) drop, 10,000-11,000 lumens: Three-story stairwells and villa entrance halls with 24-28 ft (7.3-8.5m) ceilings.
• 30 Heads, 31.50" (80cm) canopy, 216.54" (550cm) drop, 12,000-13,200 lumens: Hotel lobbies and foyers 12' × 12' (3.7 × 3.7m) with 28-32 ft (8.5-9.8m) ceilings.
• 35 Heads, 31.50" (80cm) canopy, 275.60" (700cm) drop, 14,000-15,400 lumens: Atriums and four-story stairwells with 32 ft+ (9.8m+) ceilings.

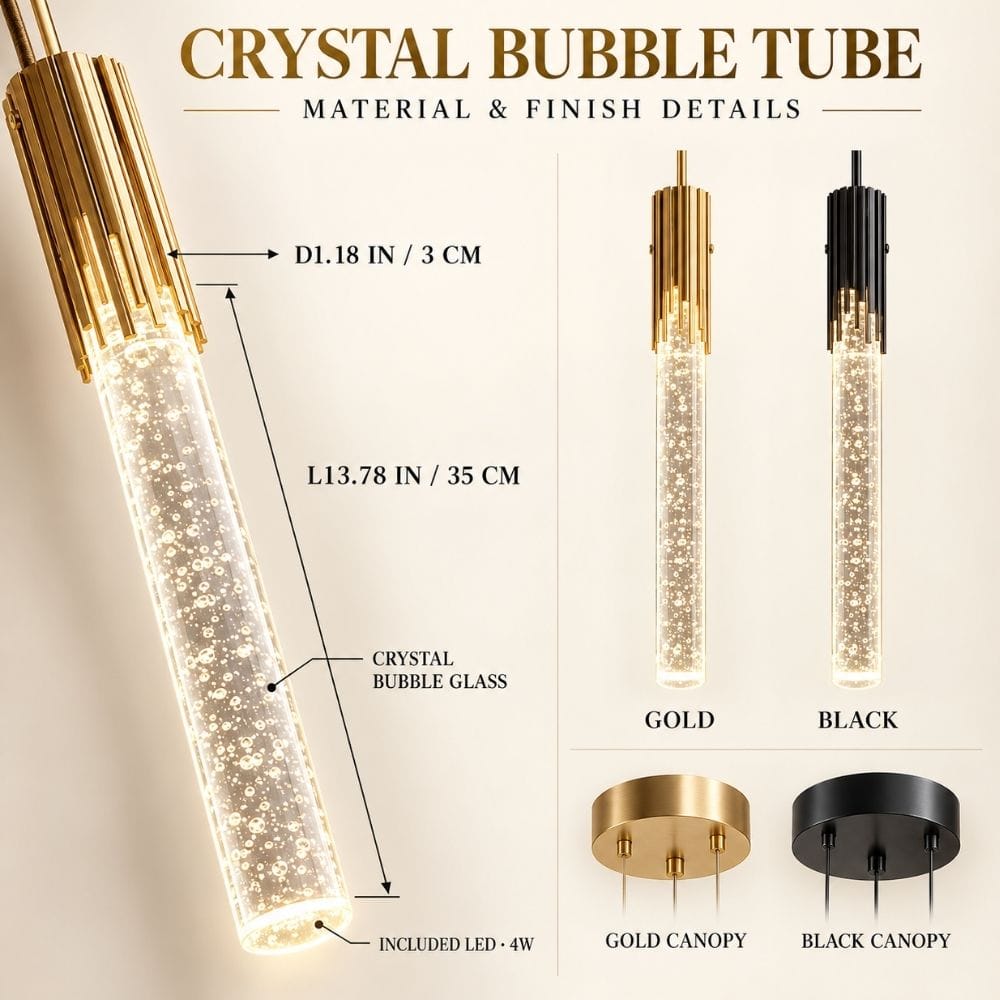

Finish guide (gold or black):

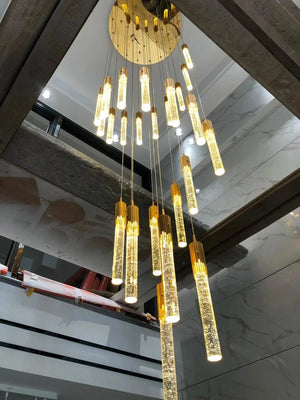

• Gold: Warms the crystal with a champagne cast; suits cream, wood, and marble interiors and matches brass rails, as in the product photo.

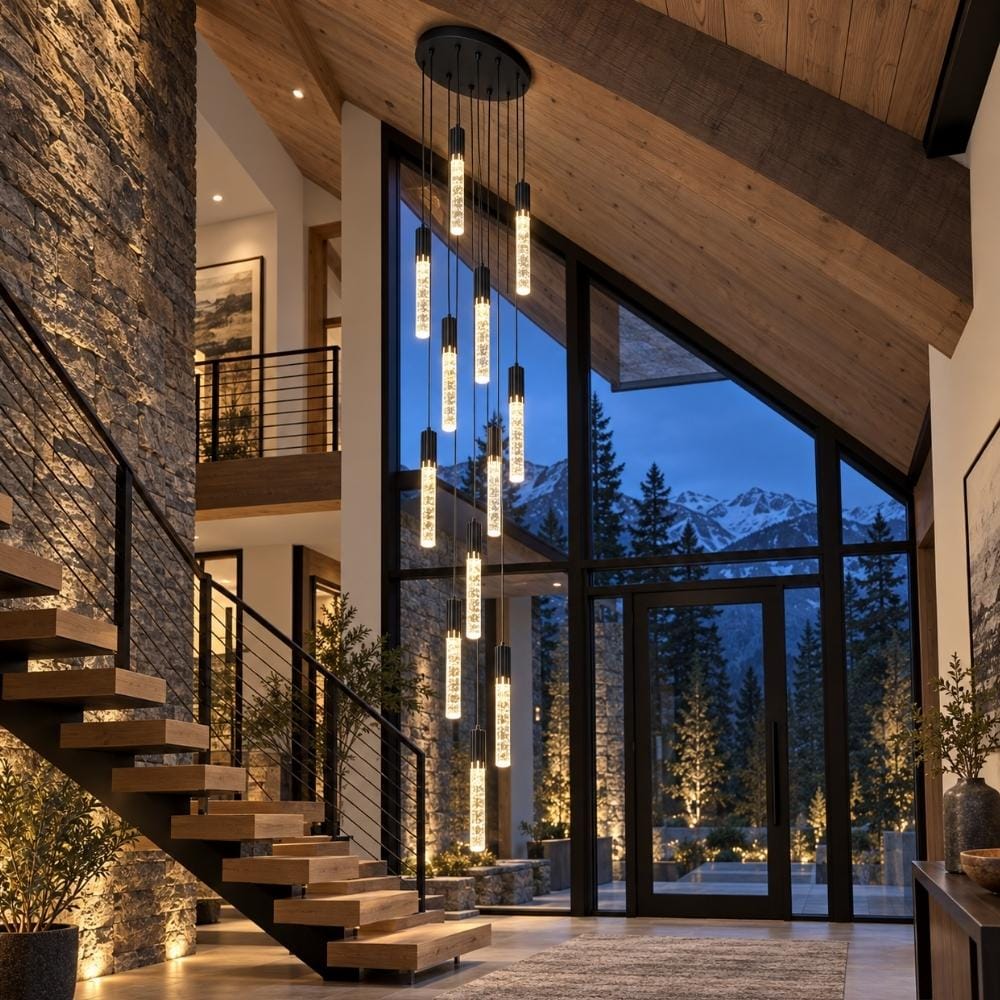

• Black: Frames the crystal in sharp contrast; suits grey, white, and modern monochrome schemes and black stair railings.

Light color guide (which bulbs to use):

• Warm White (2700-3000K): The match for the gold caps and for homes; gives the bubbles a champagne sparkle. Choose it for foyers, stairwells, and living rooms.

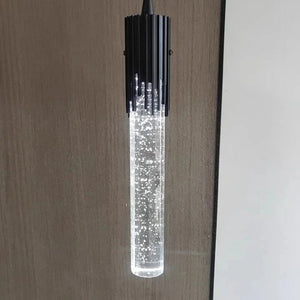

• Natural White (4000K): Keeps the crystal clear and suits the black caps in modern white or grey interiors and hotel lobbies.
• Bulb choice: The 4W LEDs are included; when replacing, keep the same wattage and color temperature on every tube so the spiral stays uniform.
• Dimming: Order the dimmable version for foyers where the fixture is the main light, and pair it with an LED-rated dimmer.

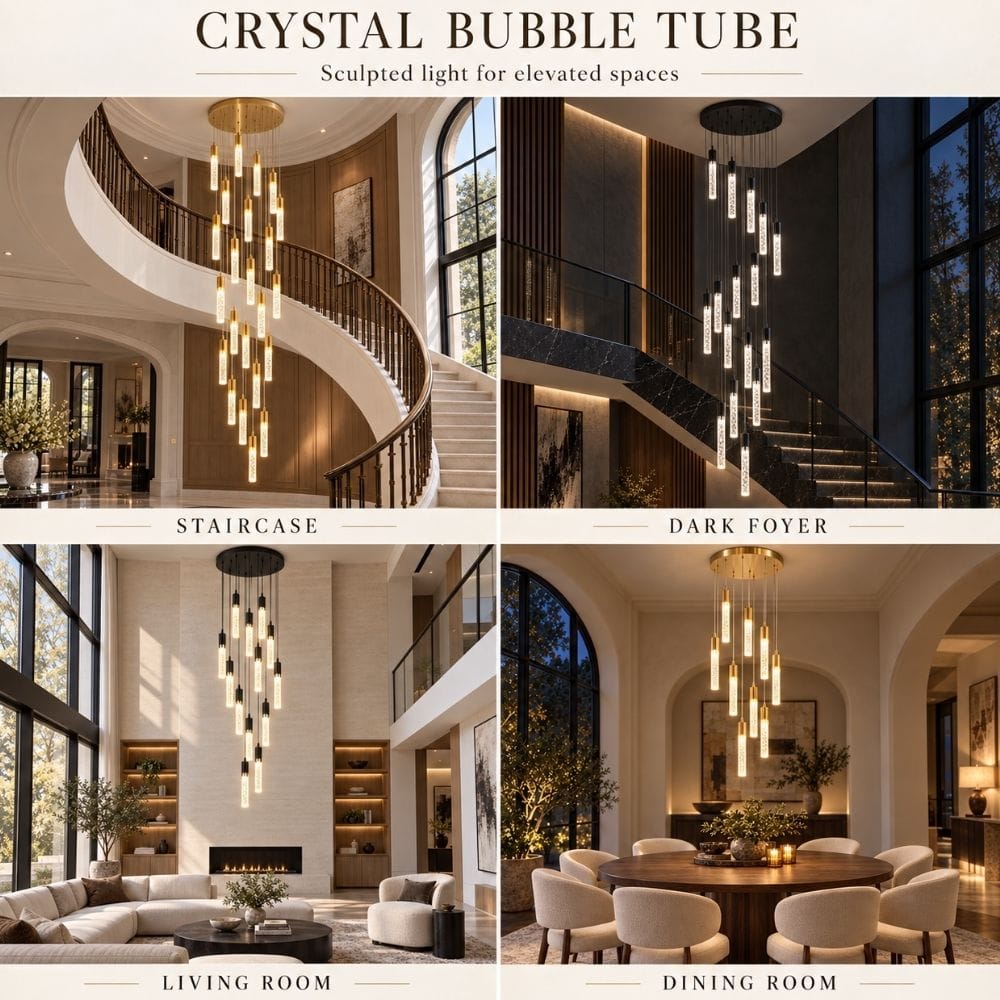

By placement:

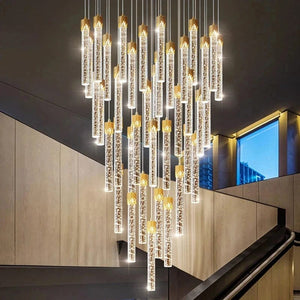

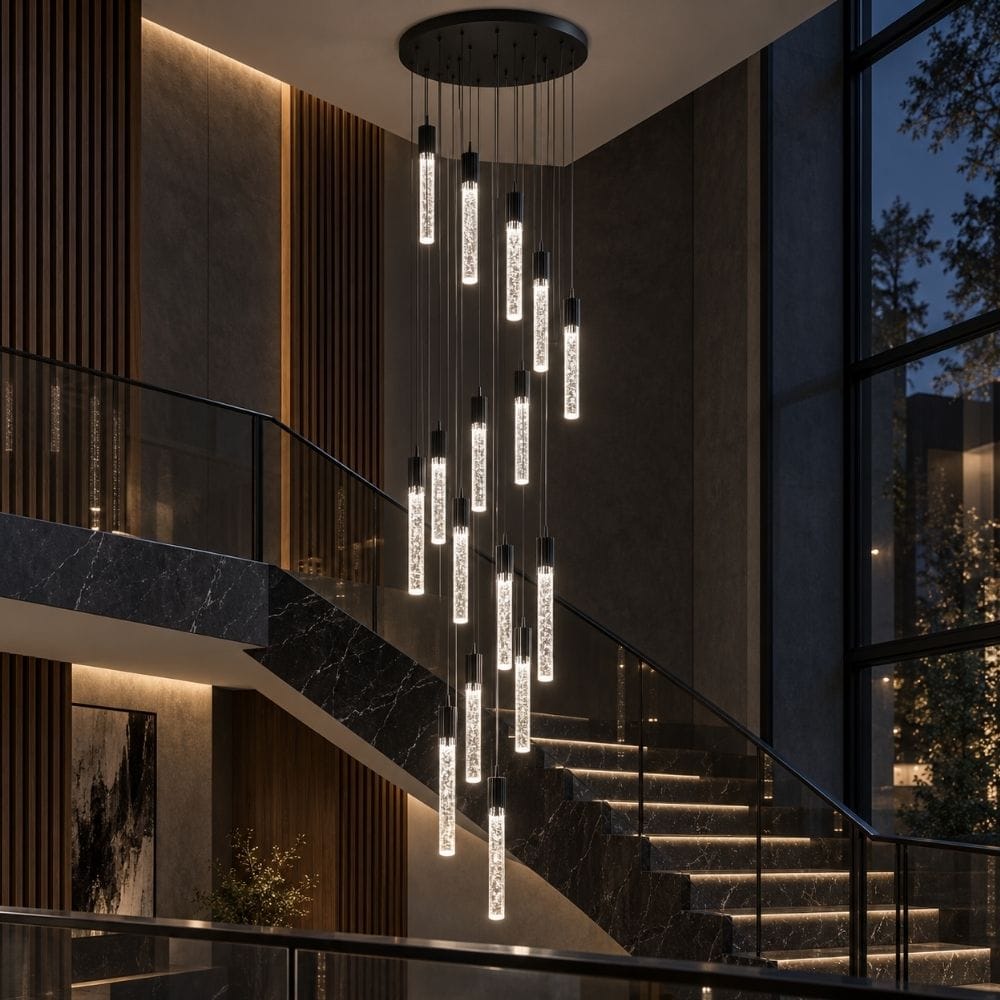

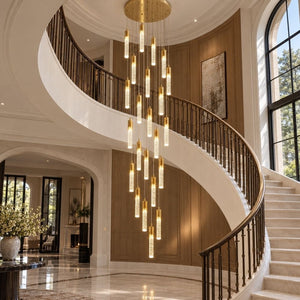

• Curved or spiral staircase: 12 to 25 Heads centered in the open well; set the wires in a descending spiral that follows the stair's turn, as in the photo.
• Straight stairwell: 10 to 20 Heads with a staggered rather than spiral wire plan.

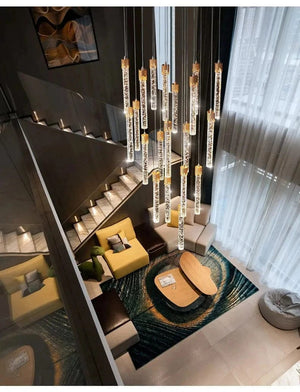

• Duplex / villa foyer: 15 to 30 Heads centered in the opening so the tubes read from the entry and the landing.
• High-ceiling entryway: 6 to 10 Heads with the drop shortened for 12-14 ft (3.7-4.3m) ceilings.

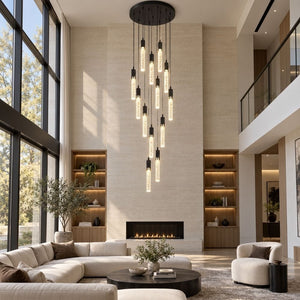

• Living room: 8 to 12 Heads over a seating group in double-height rooms of 14 ft+ (4.3m+).

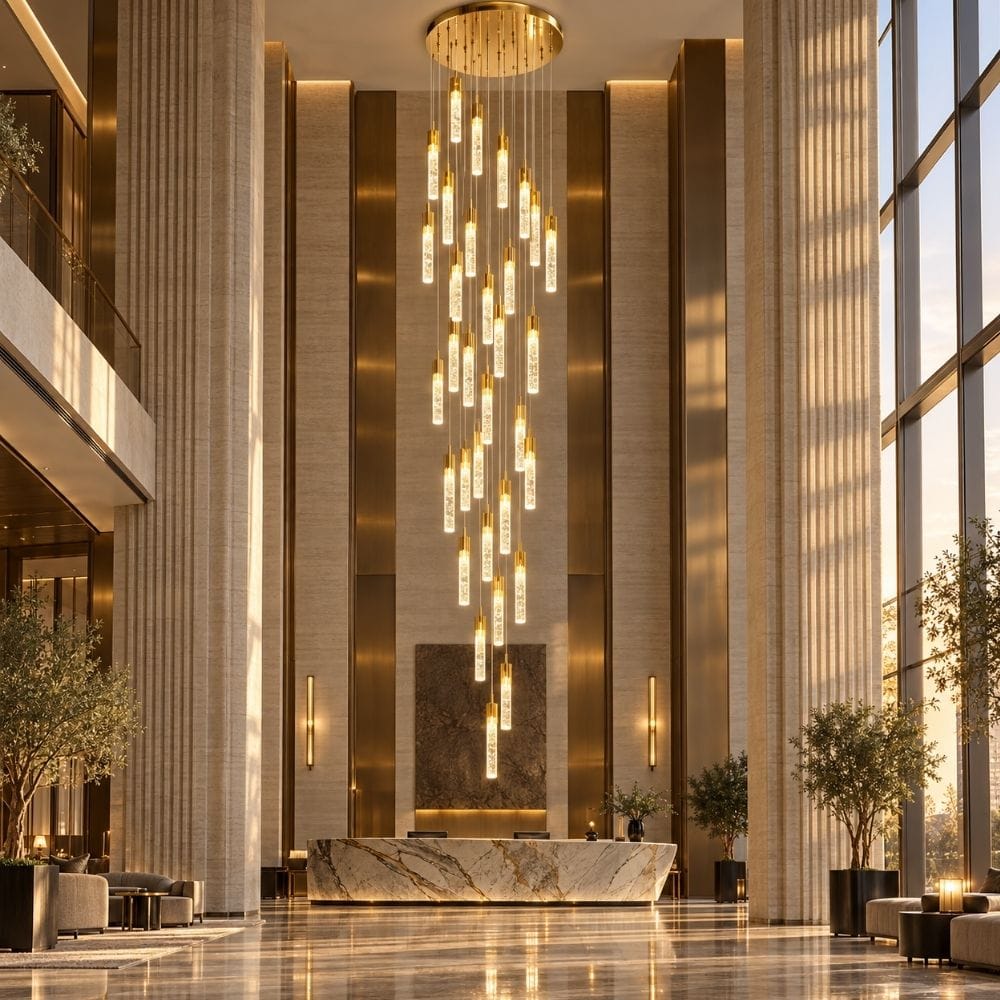

• Hotel lobbies: 30 or 35 Heads as a centerpiece, or several 12 to 15 Head clusters in a row.
• Sloped ceiling: All sizes mount on angled ceilings; the wires hang vertically.

Hanging height rules by room (practical)

• Stairwell: Keep the lowest tube at least 7 ft (2.13m) above the treads it hangs over and 6" (15cm) clear of the rail; set the highest tubes near the top third of the well.
• Foyer: Maintain 7 ft (2.13m) of floor clearance; in two-story spaces, spread the tubes so the cascade's center sits level with the second-floor line.
• Living room: Keep the lowest tube 7 ft (2.13m) above walking areas unless it hangs over a table.
• Over a console or entry table: Set the lowest tube 30-36" (76-91cm) above the surface with a 10 ft ceiling; add 3" (7.6cm) per additional foot.

Placement tips that prevent common mistakes

• Drop calculation: The listed height is the maximum with wires fully extended; every wire shortens on site. Each tube adds 13.78" (35cm) below its wire.
• Spiral plan: For a curved stair, cut wires so the tubes descend around the canopy in one direction, following the rail; for a straight well, use a staggered pattern instead.
• Proportion check: Keep the canopy diameter under one-third of the stairwell or foyer opening width.
• Rail clearance: On curved stairs the rail sweeps into the well; check the lowest tubes against the rail at every turn, not just at the landing.
• Air movement: Fine wires sway near HVAC vents or open doors; keep the canopy 3 ft (0.9m) or more from vents.
