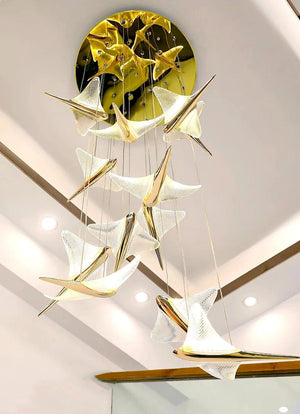

Jen Modern Stair Chandelier

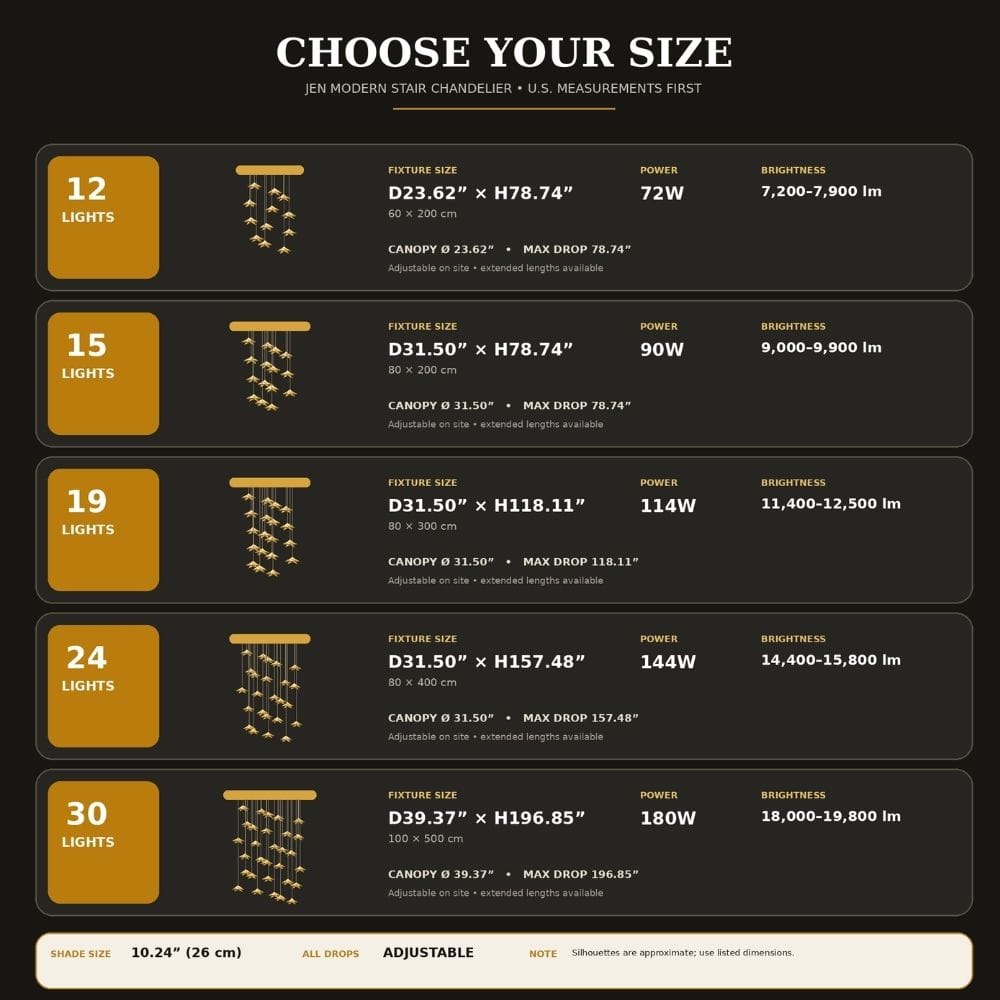

12 Lights:

• Size: D23.62" (60 cm) × H78.74" (200 cm), adjustable
• Lampshade Size: 10.24" (26 cm)
• Wattage: 72W
• Brightness: approx. 7,200–7,900 lumens

15 Lights:

• Size: D31.50" (80 cm) × H78.74" (200 cm), adjustable
• Lampshade Size: 10.24" (26 cm)
• Wattage: 90W
• Brightness: approx. 9,000–9,900 lumens

19 Lights:

• Size: D31.50" (80 cm) × H118.11" (300 cm), adjustable
• Lampshade Size: 10.24" (26 cm)
• Wattage: 114W
• Brightness: approx. 11,400–12,500 lumens

24 Lights:

• Size: D31.50" (80 cm) × H157.48" (400 cm), adjustable
• Lampshade Size: 10.24" (26 cm)
• Wattage: 144W
• Brightness: approx. 14,400–15,800 lumens

30 Lights:

• Size: D39.37" (100 cm) × H196.85" (500 cm), adjustable
• Lampshade Size: 10.24" (26 cm)
• Wattage: 180W
• Brightness: approx. 18,000–19,800 lumens

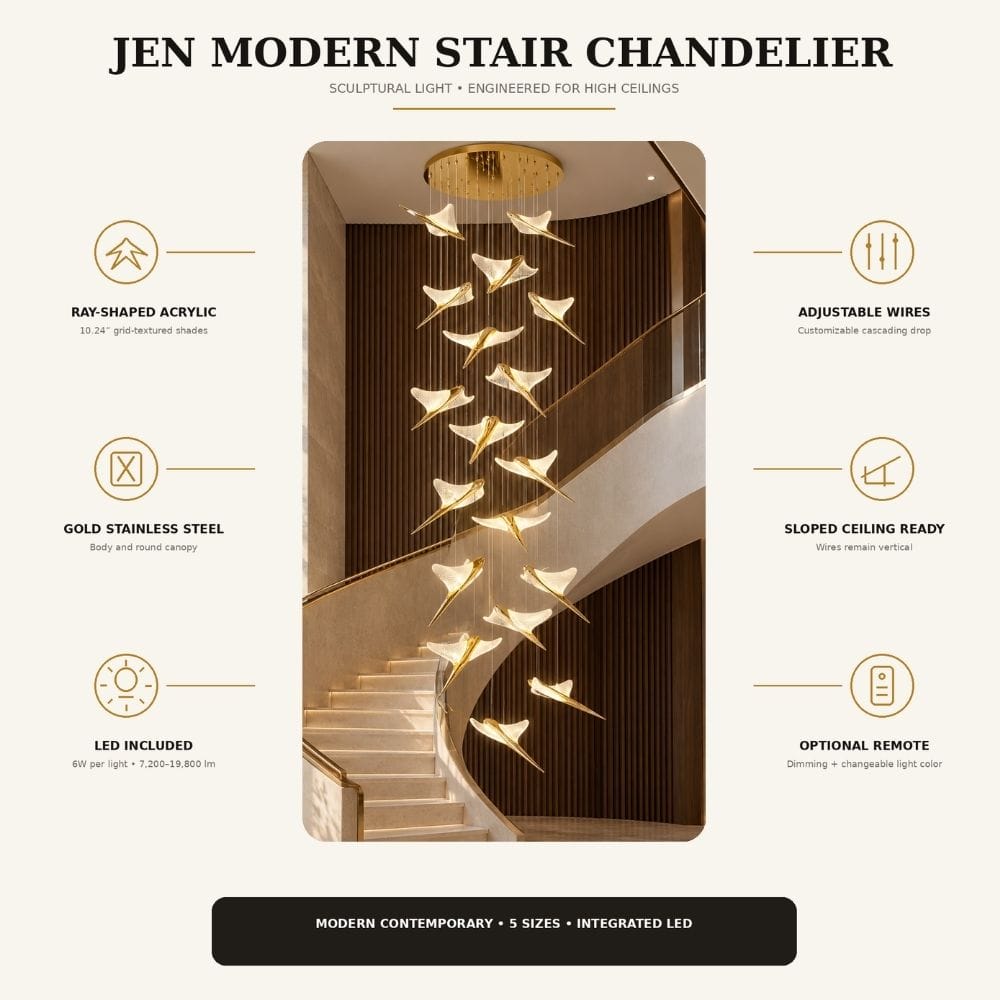

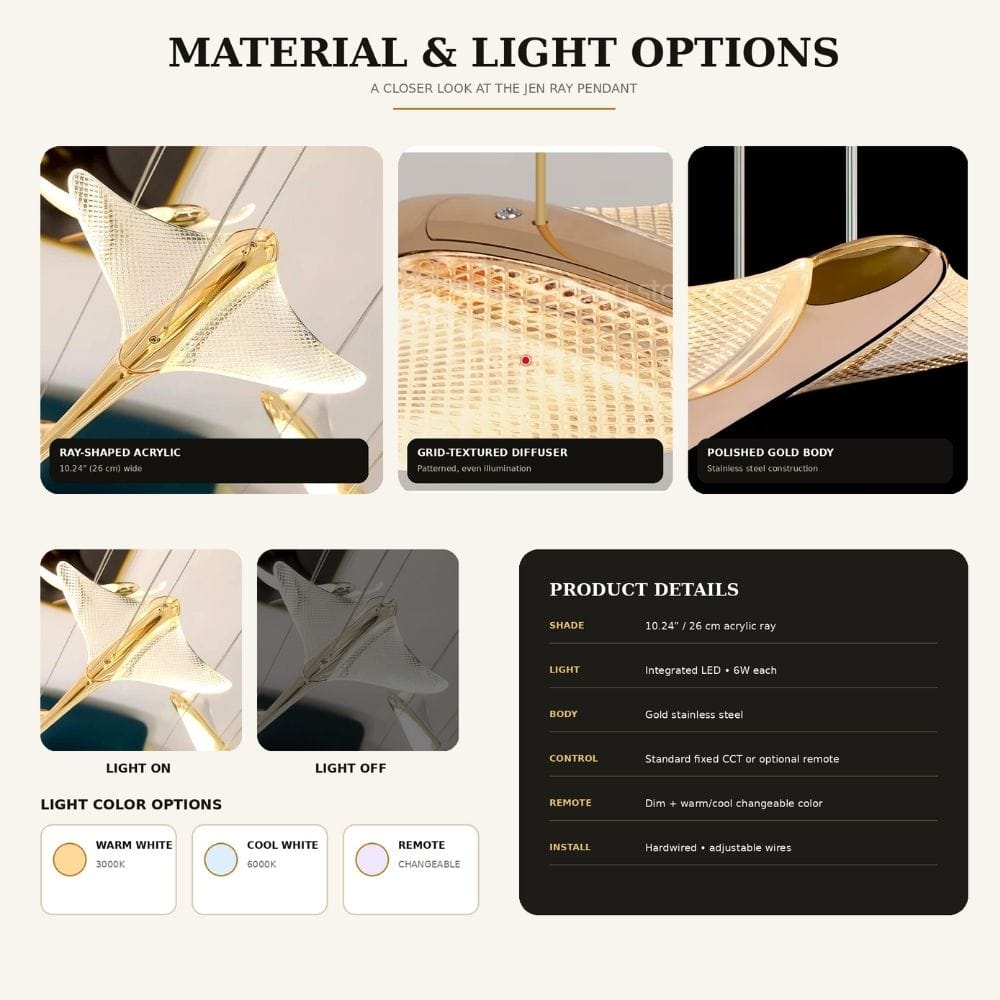

General Specifications:

• Hanging Wire: Adjustable
• Light Source: LED (included, 6W per light)
• Dimmable: Optional — available with remote control variant
• Body Material: Stainless Steel
• Lampshade Material: Acrylic
• Style: Modern Contemporary
• Item Type: Chandelier, Ceiling Light
• Warranty: 2 years
• Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, RoHS, SAA, VDE
• Ideal For: Staircase, duplex/villa foyer, high-ceiling entryway, living room, dining rooms, hotel lobbies

• Installation: Hardwired. Licensed electrician recommended. Mount the canopy to a junction box rated for the fixture weight; the 24 and 30-light versions need a support bracket into ceiling framing and lift access. Two people are needed for all sizes.
• Wire adjustment: Each wire adjusts at the canopy and can be shortened on site. Set and lock every wire length and ray angle before energizing.
• Lighting: LED included, 6W per light; no bulbs to replace. Standard version uses an on/off switch; the remote variant dims and changes color from its remote and should not be paired with a wall dimmer.

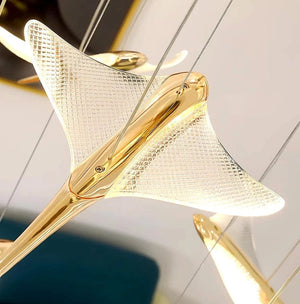

• Cleaning: Power off at the breaker. Dust the acrylic rays with a soft brush or dry microfiber cloth, following the grid texture; for smudges, use a lightly damp cloth and dry immediately. Avoid alcohol-based or abrasive cleaners, which cloud acrylic and mark the gold finish. Clean tall installations from a landing or with an extension pole.
• Checkups: Re-check the canopy fixing and each wire lock one week after installation, then annually.

Jen scales by pendant count, canopy diameter, and drop length, so ceiling height sets the drop, opening width sets the canopy, and room area sets the number of rays. Every size from 12 lights up can serve as the main light in its space; then decide whether you want the remote variant.

Light count guide (how many rays do you need):

• 12 Lights, 23.62" (60cm) canopy, 78.74" (200cm) drop, 7,200-7,900 lumens: Single-story stairwells, entry halls, and dining rooms with 12-14 ft (3.7-4.3m) ceilings; about 215-270 sq ft (20-25 m²).
• 15 Lights, 31.50" (80cm) canopy, 78.74" (200cm) drop, 9,000-9,900 lumens: Living rooms and stairwells 4-6 ft (1.2-1.8m) wide with 14-16 ft (4.3-4.9m) ceilings; about 270-325 sq ft (25-30 m²).
• 19 Lights, 31.50" (80cm) canopy, 118.11" (300cm) drop, 11,400-12,500 lumens: Two-story foyers 8' × 8' (2.4 × 2.4m) with 16-20 ft (4.9-6.1m) ceilings.
• 24 Lights, 31.50" (80cm) canopy, 157.48" (400cm) drop, 14,400-15,800 lumens: Stairwells 6 ft+ (1.8m+) wide and villa entrance halls with 20-24 ft (6.1-7.3m) ceilings.
• 30 Lights, 39.37" (100cm) canopy, 196.85" (500cm) drop, 18,000-19,800 lumens: Hotel lobbies, atriums, and three-story stairwells with 24 ft+ (7.3m+) ceilings.

Light color guide (which version to choose):

• Standard version: Fixed color temperature at order. Warm White suits homes and the gold finish, giving the textured acrylic a soft amber glow; Cool White suits hotel lobbies and modern grey or white interiors.
• Remote variant: Switches between warm and cool white and dims from the included remote; choose it for foyers and living rooms used both during the day and in the evening, or if you are unsure which color to fix.
• Matching: Keep the fixture at the same color temperature as sconces and recessed lights visible from the staircase.

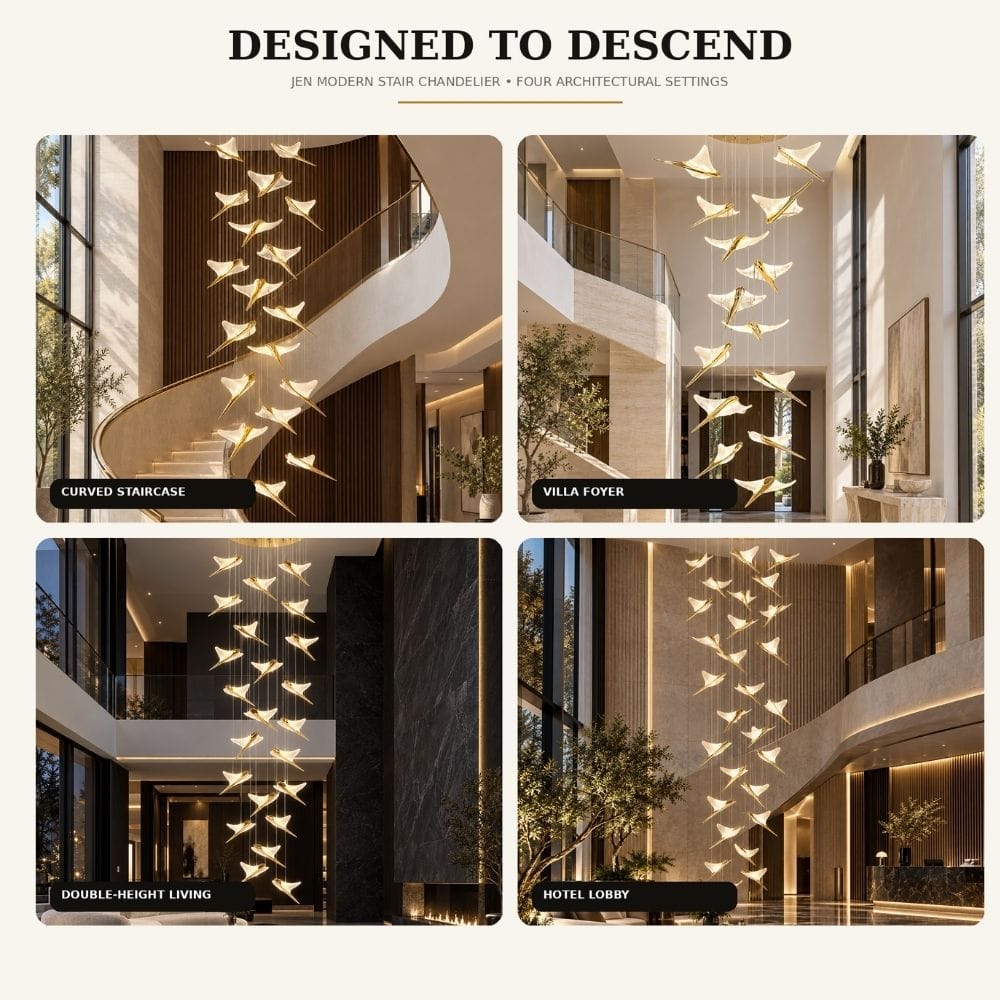

By placement:

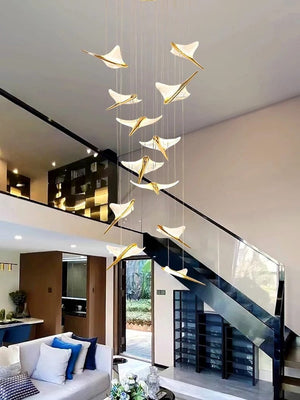

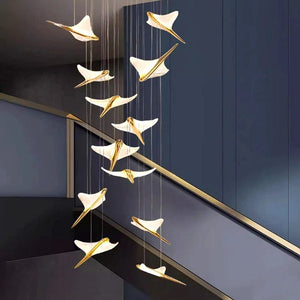

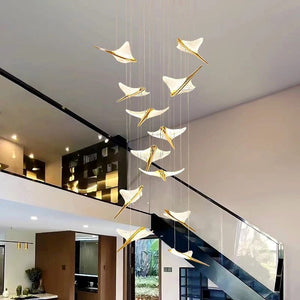

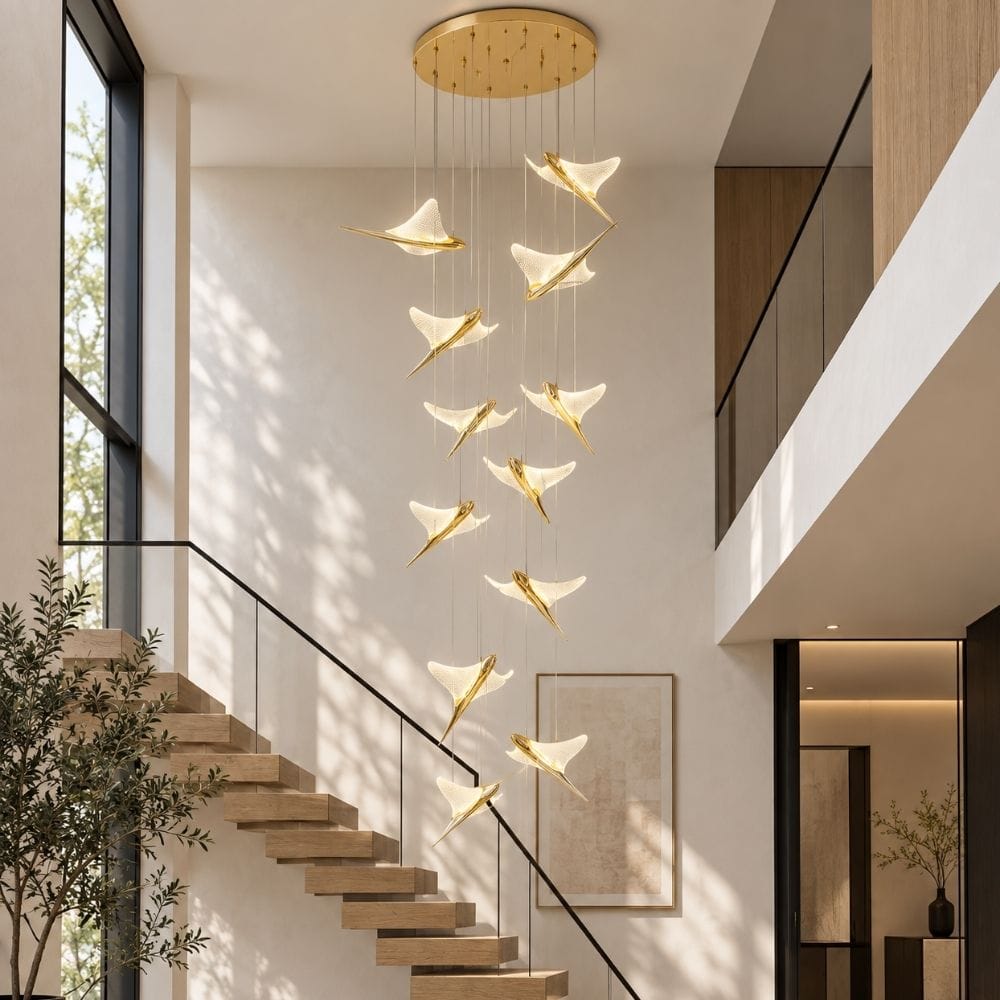

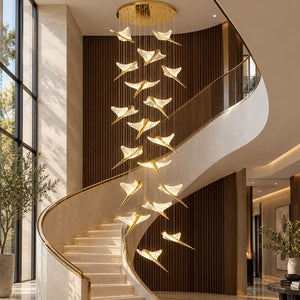

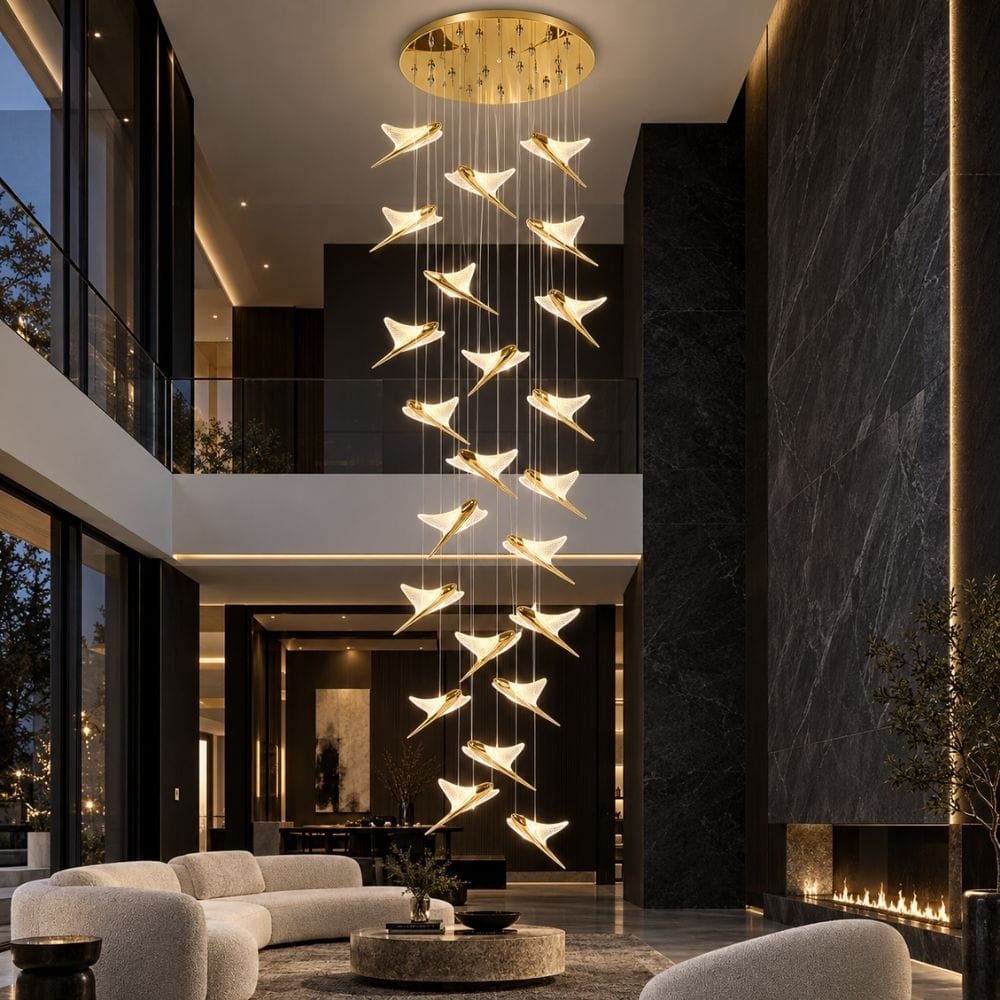

• Staircase / stairwell: 12 to 24 Lights centered in the open well, with the rays staggered and turned so they appear to glide down the stair.

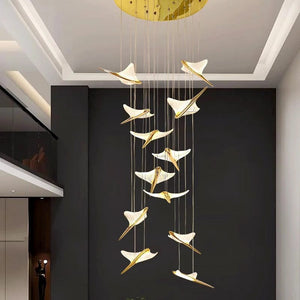

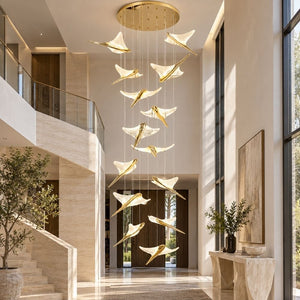

• Duplex / villa foyer: 19 to 30 Lights centered in the opening; the rays read from the entry and the landing.
• High-ceiling entryway: 12 Lights with the drop shortened for 12-14 ft (3.7-4.3m) ceilings.

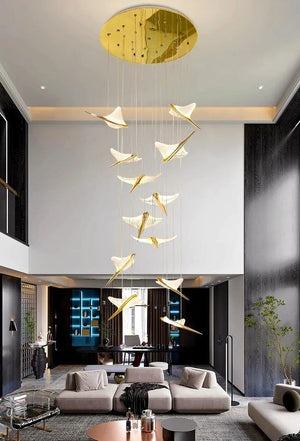

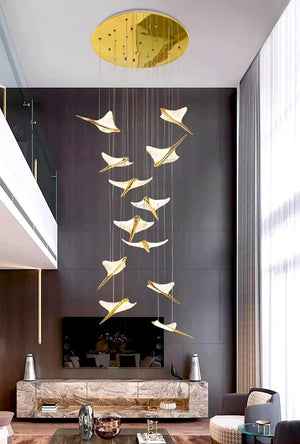

• Living room: 12 or 15 Lights over a seating group in double-height rooms of 14 ft+ (4.3m+).

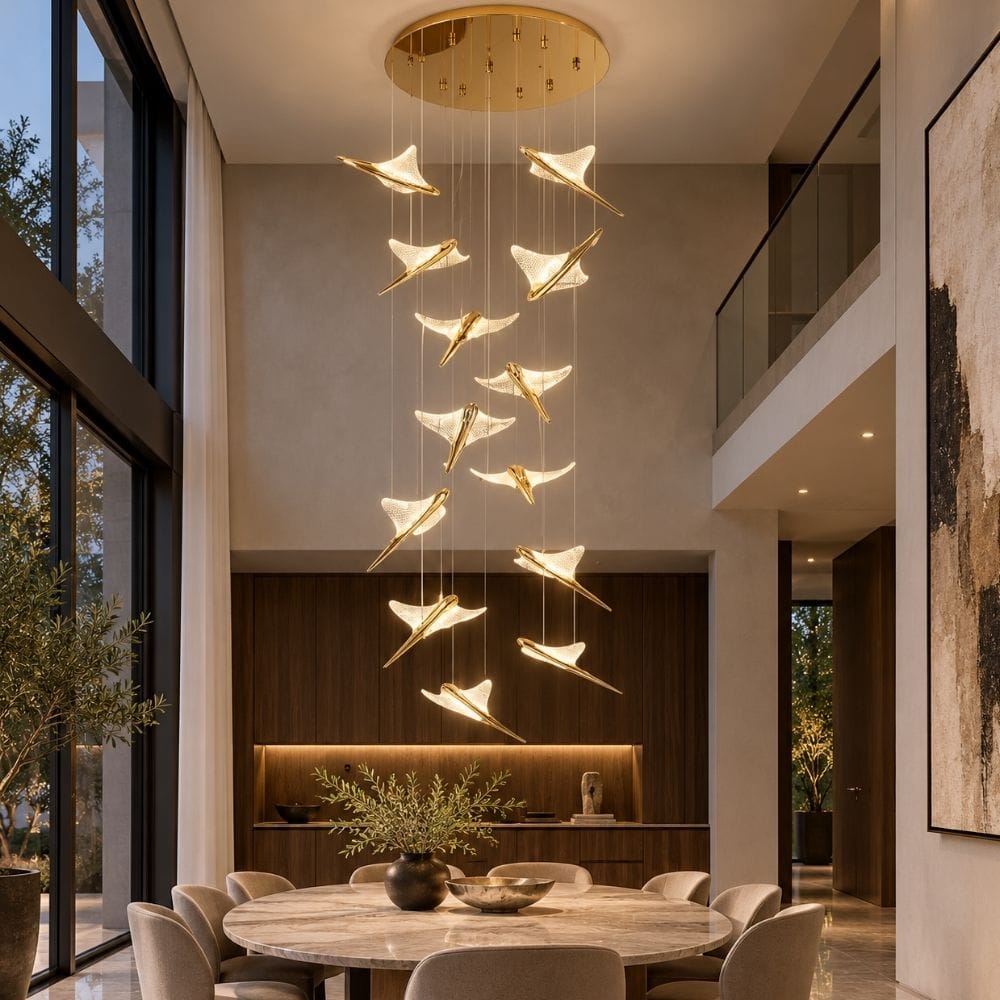

• Dining room: 12 Lights at a shallow stagger in a double-height dining room, keeping the lowest ray 30-36" (76-91cm) above the table.
• Hotel lobbies: 30 Lights as a centerpiece, or several 12 to 15 Light clusters in a row.
• Sloped ceiling: All sizes mount on angled ceilings; the wires hang vertically.

Hanging height rules by room (practical)

• Stairwell: Keep the lowest ray at least 7 ft (2.13m) above the treads it hangs over and 6" (15cm) clear of the rail; set the highest rays near the top third of the well.
• Foyer: Maintain 7 ft (2.13m) of floor clearance; in two-story spaces, spread the rays so the cascade's center sits level with the second-floor line.
• Dining table: Set the lowest ray 30-36" (76-91cm) above the tabletop with a 10 ft ceiling; add 3" (7.6cm) per additional foot.
• Living room: Keep the lowest ray 7 ft (2.13m) above walking areas unless it hangs over a table.

Placement tips that prevent common mistakes

• Drop calculation: The listed height is the maximum with wires fully extended; every wire shortens on site. Each ray spans 10.24" (26cm), so allow its wingspan when setting the lowest point.
• Ray orientation: Turn the rays at varied angles so they appear to fly in different directions; rays all facing one way read as a flat row.
• Wire pairs: Each ray hangs on wires at its wingtips; equal lengths keep it level, a slight difference tilts it into a banking pose.
• Proportion check: Keep the canopy diameter under one-third of the stairwell or foyer opening width, and allow the rays to extend beyond the canopy edge.
• Air movement: Light acrylic rays on fine wires move near HVAC vents; a slight sway suits the design, but keep the canopy 3 ft (0.9m) or more from vents to avoid tangling.
