Kate Modern Stairwell Chandelier

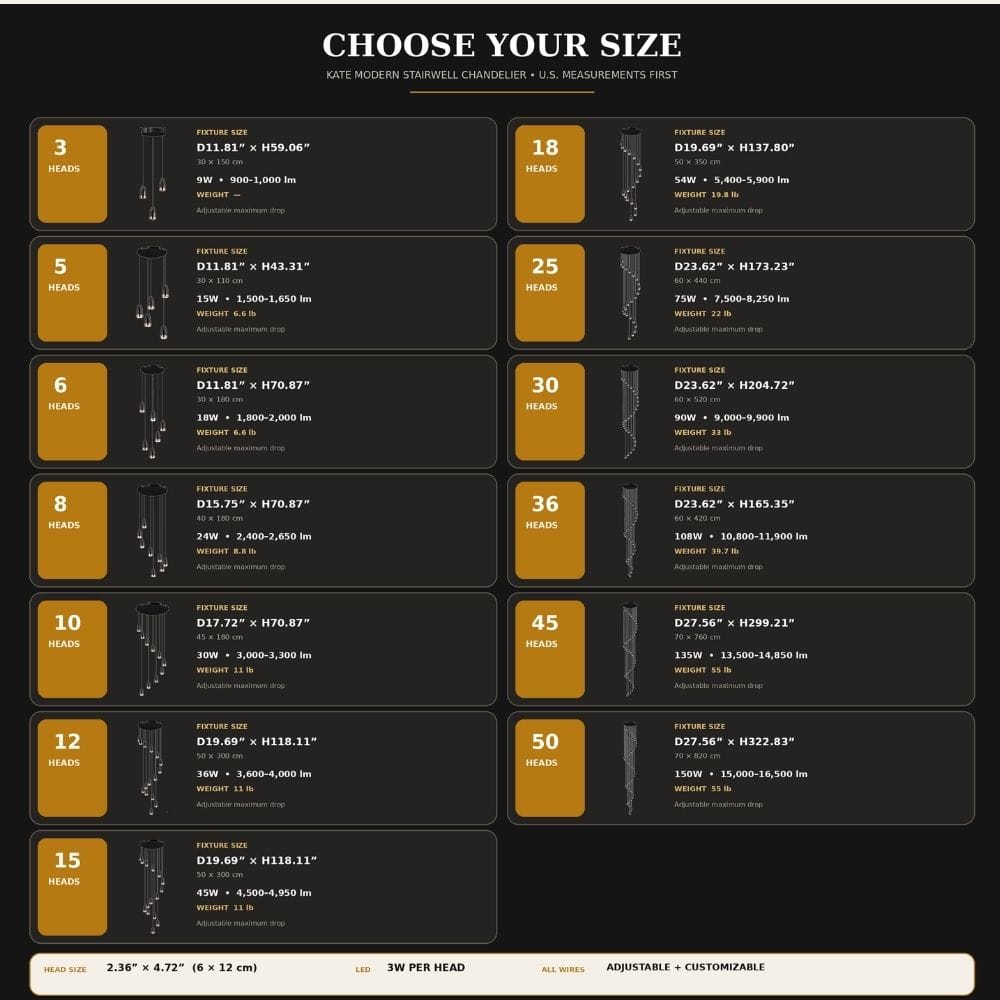

3 Lights:

• Size: D11.81" (30 cm) × H59.06" (150 cm), adjustable
• Lampshade Size: 2.36" × 4.72" (6 × 12 cm)
• Wattage: 9W
• Brightness: approx. 900–1,000 lumens

5 Heads:

• Size: D11.81" (30 cm) × H43.31" (110 cm), adjustable
• Lampshade Size: 2.36" × 4.72" (6 × 12 cm)
• Wattage: 15W
• Brightness: approx. 1,500–1,650 lumens
• Weight: approx. 6.6 lbs (3 kg)

6 Heads:

• Size: D11.81" (30 cm) × H70.87" (180 cm), adjustable
• Lampshade Size: 2.36" × 4.72" (6 × 12 cm)
• Wattage: 18W
• Brightness: approx. 1,800–2,000 lumens
• Weight: approx. 6.6 lbs (3 kg)

8 Heads:

• Size: D15.75" (40 cm) × H70.87" (180 cm), adjustable
• Lampshade Size: 2.36" × 4.72" (6 × 12 cm)
• Wattage: 24W
• Brightness: approx. 2,400–2,650 lumens
• Weight: approx. 8.8 lbs (4 kg)

10 Heads:

• Size: D17.72" (45 cm) × H70.87" (180 cm), adjustable
• Lampshade Size: 2.36" × 4.72" (6 × 12 cm)
• Wattage: 30W
• Brightness: approx. 3,000–3,300 lumens
• Weight: approx. 11 lbs (5 kg)

12 Heads:

• Size: D19.69" (50 cm) × H118.11" (300 cm), adjustable
• Lampshade Size: 2.36" × 4.72" (6 × 12 cm)
• Wattage: 36W
• Brightness: approx. 3,600–4,000 lumens
• Weight: approx. 11 lbs (5 kg)

15 Lights:

• Size: D19.69" (50 cm) × H118.11" (300 cm), adjustable
• Lampshade Size: 2.36" × 4.72" (6 × 12 cm)
• Wattage: 45W
• Brightness: approx. 4,500–4,950 lumens
• Weight: approx. 11 lbs (5 kg)

18 Heads:

• Size: D19.69" (50 cm) × H137.80" (350 cm), adjustable
• Lampshade Size: 2.36" × 4.72" (6 × 12 cm)
• Wattage: 54W
• Brightness: approx. 5,400–5,900 lumens
• Weight: approx. 19.8 lbs (9 kg)

25 Heads:

• Size: D23.62" (60 cm) × H173.23" (440 cm), adjustable
• Lampshade Size: 2.36" × 4.72" (6 × 12 cm)
• Wattage: 75W
• Brightness: approx. 7,500–8,250 lumens
• Weight: approx. 22 lbs (10 kg)

30 Heads:

• Size: D23.62" (60 cm) × H204.72" (520 cm), adjustable
• Lampshade Size: 2.36" × 4.72" (6 × 12 cm)
• Wattage: 90W
• Brightness: approx. 9,000–9,900 lumens
• Weight: approx. 33 lbs (15 kg)

36 Heads:

• Size: D23.62" (60 cm) × H165.35" (420 cm), adjustable
• Lampshade Size: 2.36" × 4.72" (6 × 12 cm)
• Wattage: 108W
• Brightness: approx. 10,800–11,900 lumens
• Weight: approx. 39.7 lbs (18 kg)

45 Heads:

• Size: D27.56" (70 cm) × H299.21" (760 cm), adjustable
• Lampshade Size: 2.36" × 4.72" (6 × 12 cm)
• Wattage: 135W
• Brightness: approx. 13,500–14,850 lumens
• Weight: approx. 55 lbs (25 kg)

50 Heads:

• Size: D27.56" (70 cm) × H322.83" (820 cm), adjustable
• Lampshade Size: 2.36" × 4.72" (6 × 12 cm)
• Wattage: 150W
• Brightness: approx. 15,000–16,500 lumens
• Weight: approx. 55 lbs (25 kg)

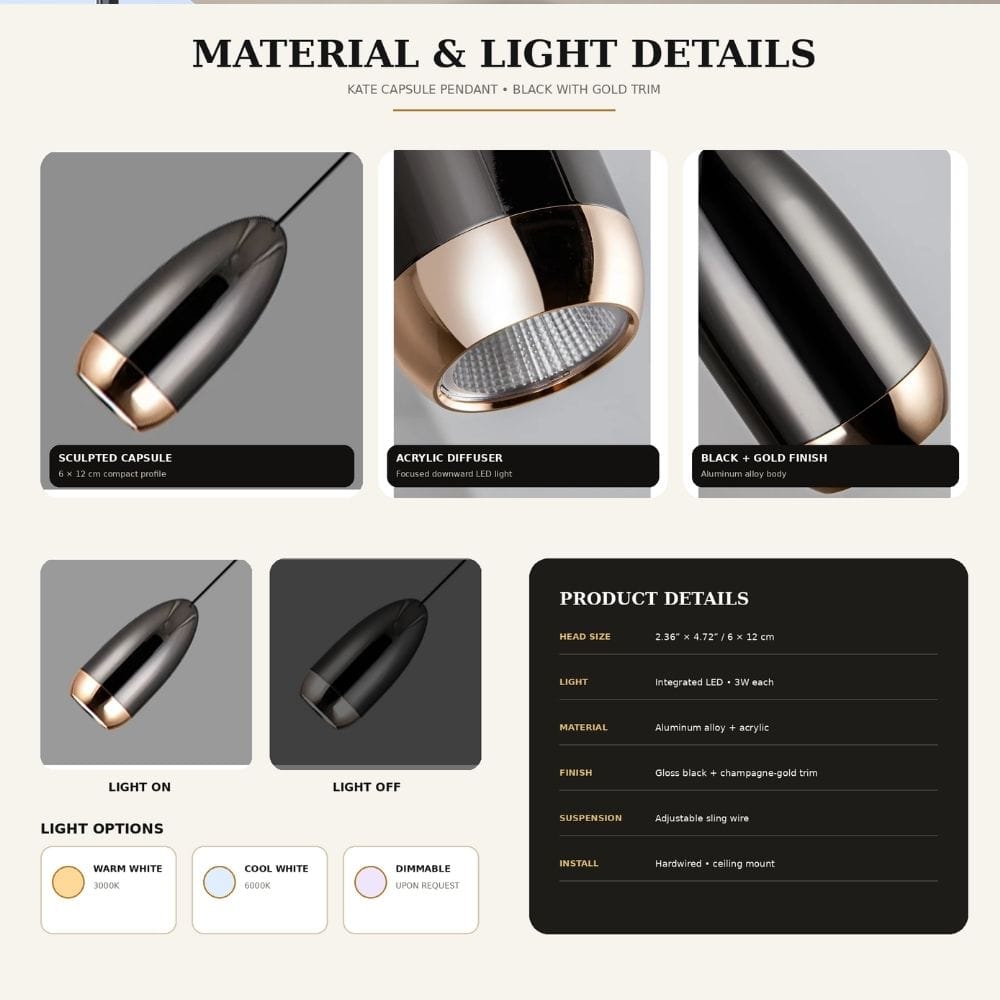

General Specifications:

• Hanging Wire: Sling suspension — freely adjustable and changeable shape
• Light Source: Integrated LED (3W per head)
• Material: Aluminum Alloy, Acrylic

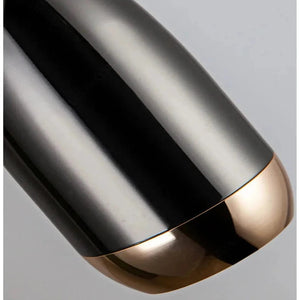

• Finish: Black with Gold trim
• Dimmable; upon request
• Installation Type: Hardwired, Ceiling Mount
• Voltage: 90–260VAC
• Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, RoHS, SAA, VDE
• Ideal For: Staircase, duplex/villa foyer, high-ceiling entryway, living room, dining room hotel lobbies

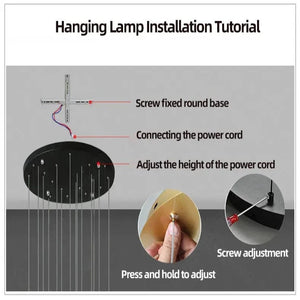

• Installation: Hardwired, 90-260VAC. Licensed electrician recommended. Mount the canopy to a junction box rated for the fixture weight, up to 55 lbs (25kg) on the 45 and 50 Heads; those sizes need a support bracket into ceiling framing and lift access. Two people are needed for clusters of 12 heads and up.
• Wire adjustment: The sling suspension adjusts at the canopy and can be shortened or rearranged on site. Set and lock every wire before energizing.

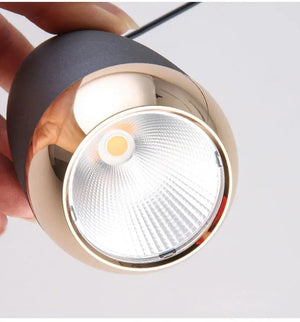

• Lighting: Integrated LED, 3W per head; no bulbs to replace. Fixed color temperature at order; dimmable version available upon request.
• Cleaning: Power off at the breaker. Wipe the aluminum pendants with a dry microfiber cloth; for marks, use a lightly damp cloth and dry immediately. Avoid abrasive or acidic cleaners on the black and gold finishes. Clean tall installations from a landing or with an extension pole.
• Checkups: Re-check the canopy fixing and each wire lock one week after installation, then annually.

Kate scales by pendant count, canopy diameter, and drop length, and the sling suspension lets every size be reshaped on site, so ceiling height sets the drop, opening width sets the canopy, and room area sets the number of heads. Each pendant throws a narrow beam, so count coverage by pools of light rather than by lumens alone.

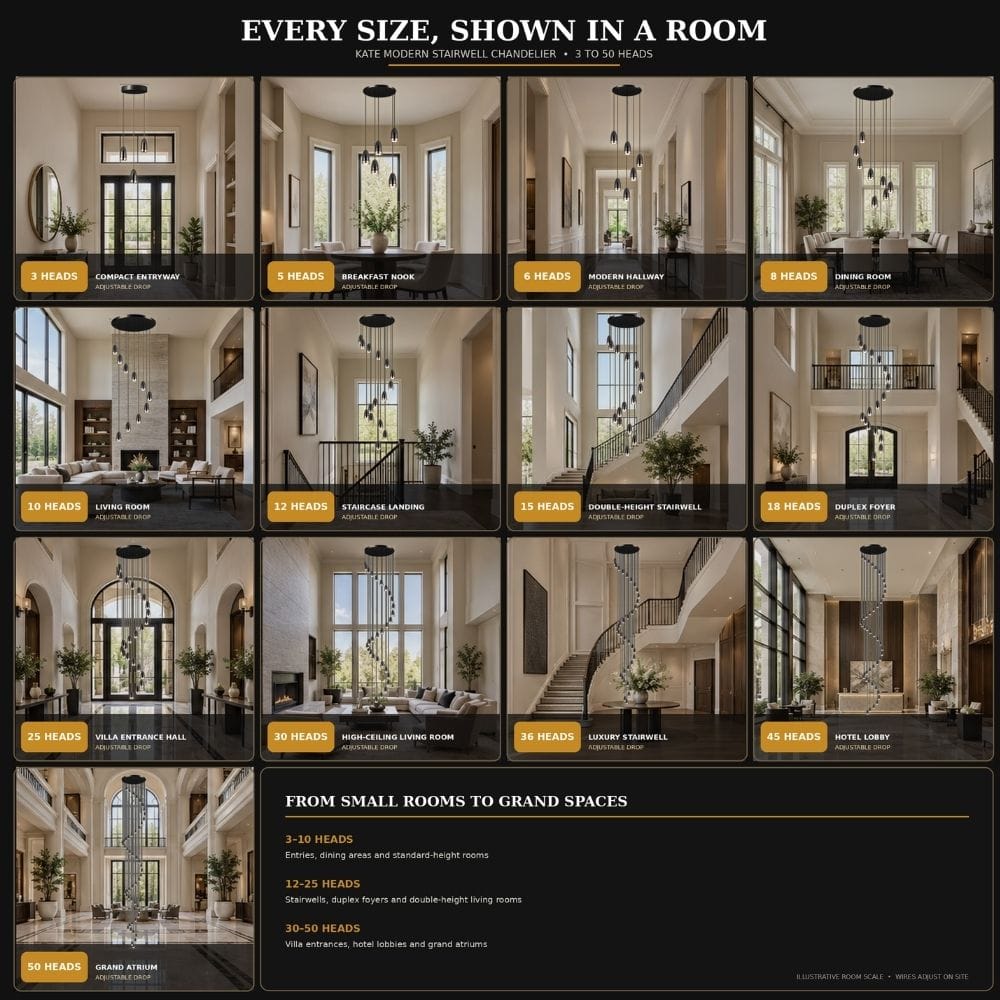

Light count guide (how many pendants do you need):

• 3 to 6 Heads, 11.81" (30cm) canopy, 43.31"-70.87" (110-180cm) drop, 900-2,000 lumens: Bedside clusters, small dining tables, and entryways with 9-12 ft (2.7-3.7m) ceilings; accent lighting.
• 8 or 10 Heads, 15.75"-17.72" (40-45cm) canopy, 70.87" (180cm) drop, 2,400-3,300 lumens: Dining tables 60"-84" (152-213cm), kitchen islands, and single-story entry halls with 10-14 ft (3-4.3m) ceilings.
• 12 or 15 Heads, 19.69" (50cm) canopy, 118.11" (300cm) drop, 3,600-4,950 lumens: Single-story stairwells and two-story wells 4-6 ft (1.2-1.8m) wide with 14-18 ft (4.3-5.5m) ceilings.
• 18 Heads, 19.69" (50cm) canopy, 137.80" (350cm) drop, 5,400-5,900 lumens: Two-story foyers 8' × 8' (2.4 × 2.4m) with 18-20 ft (5.5-6.1m) ceilings.
• 25 or 30 Heads, 23.62" (60cm) canopy, 173.23"-204.72" (440-520cm) drop, 7,500-9,900 lumens: Stairwells 6 ft+ (1.8m+) wide and villa entrance halls with 20-26 ft (6.1-7.9m) ceilings; the sizes that light a foyer on their own.
• 36 Heads, 23.62" (60cm) canopy, 165.35" (420cm) drop, 10,800-11,900 lumens: Foyers 10' × 10' (3 × 3m) with 22-26 ft (6.7-7.9m) ceilings, in a denser cluster than the 30 Heads.
• 45 or 50 Heads, 27.56" (70cm) canopy, 299.21"-322.83" (760-820cm) drop, 13,500-16,500 lumens: Hotel lobbies, atriums, and four-story stairwells with 30 ft+ (9.1m+) ceilings.

Light color guide:

• Confirm Warm White or Cool White at order. Warm White suits residential stairwells, dining tables, and the gold trim; Cool White suits hotel lobbies and modern grey or white interiors where the black pendants should read crisp.
• Dimming: Order the dimmable version wherever the fixture is the main light, and pair it with an LED-rated dimmer.
• Matching: Keep the pendants at the same color temperature as sconces and recessed lights visible from the staircase.

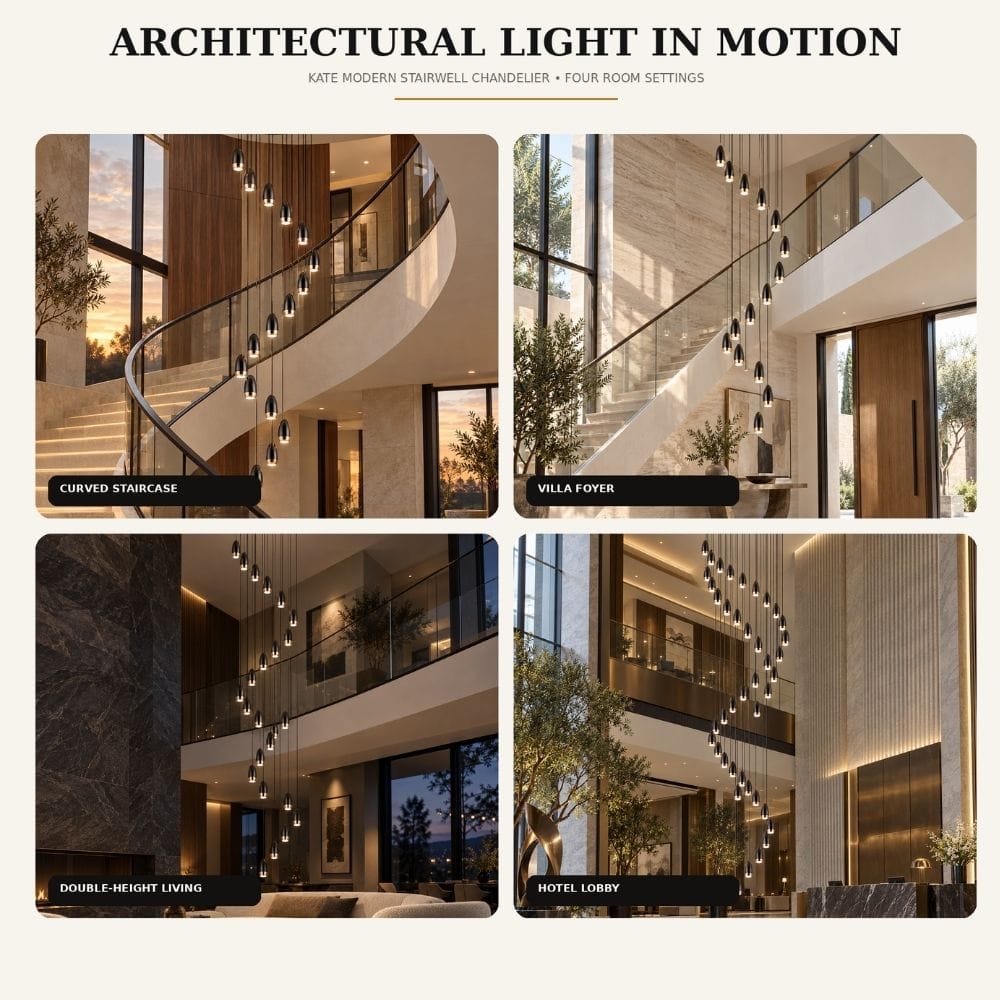

By placement:

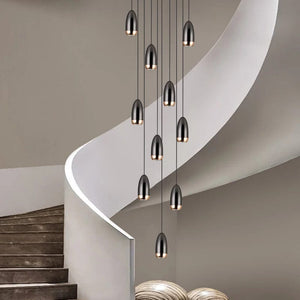

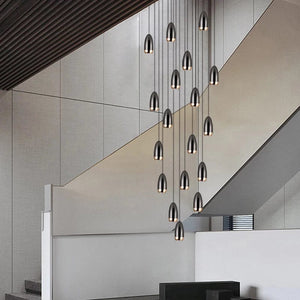

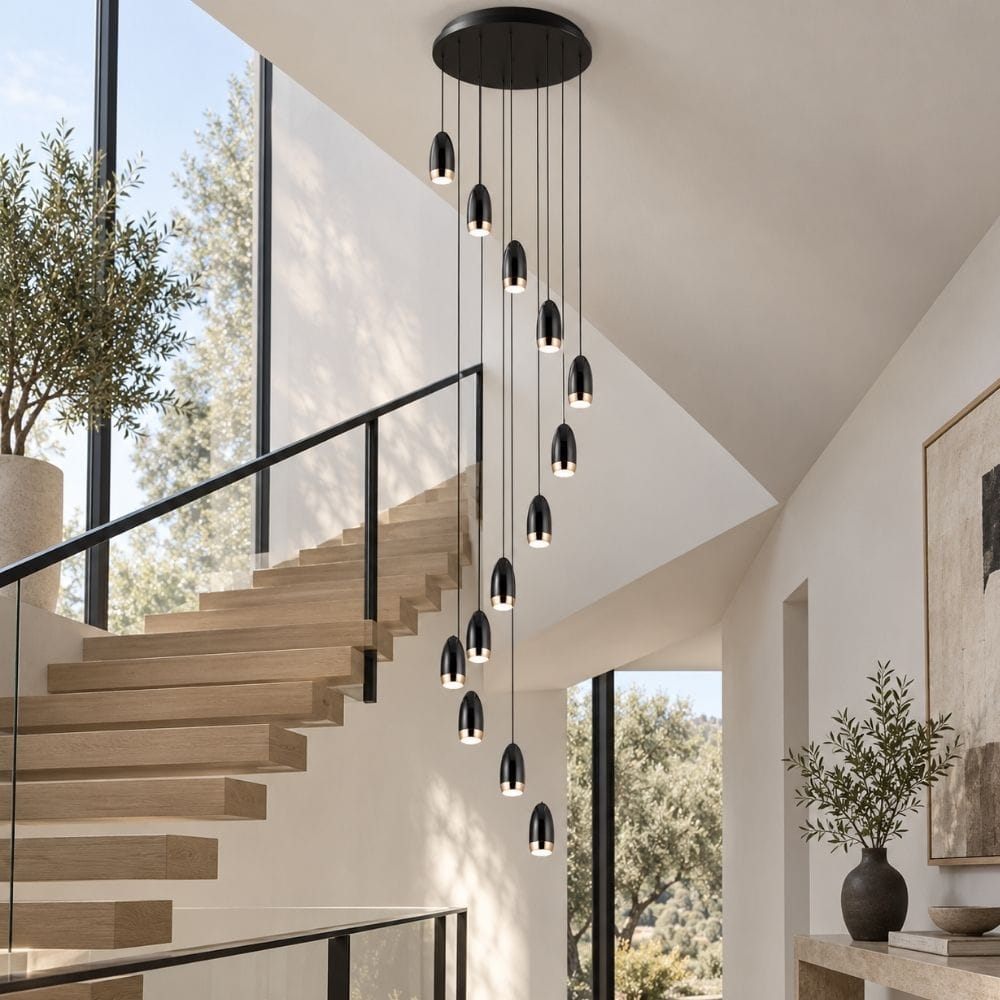

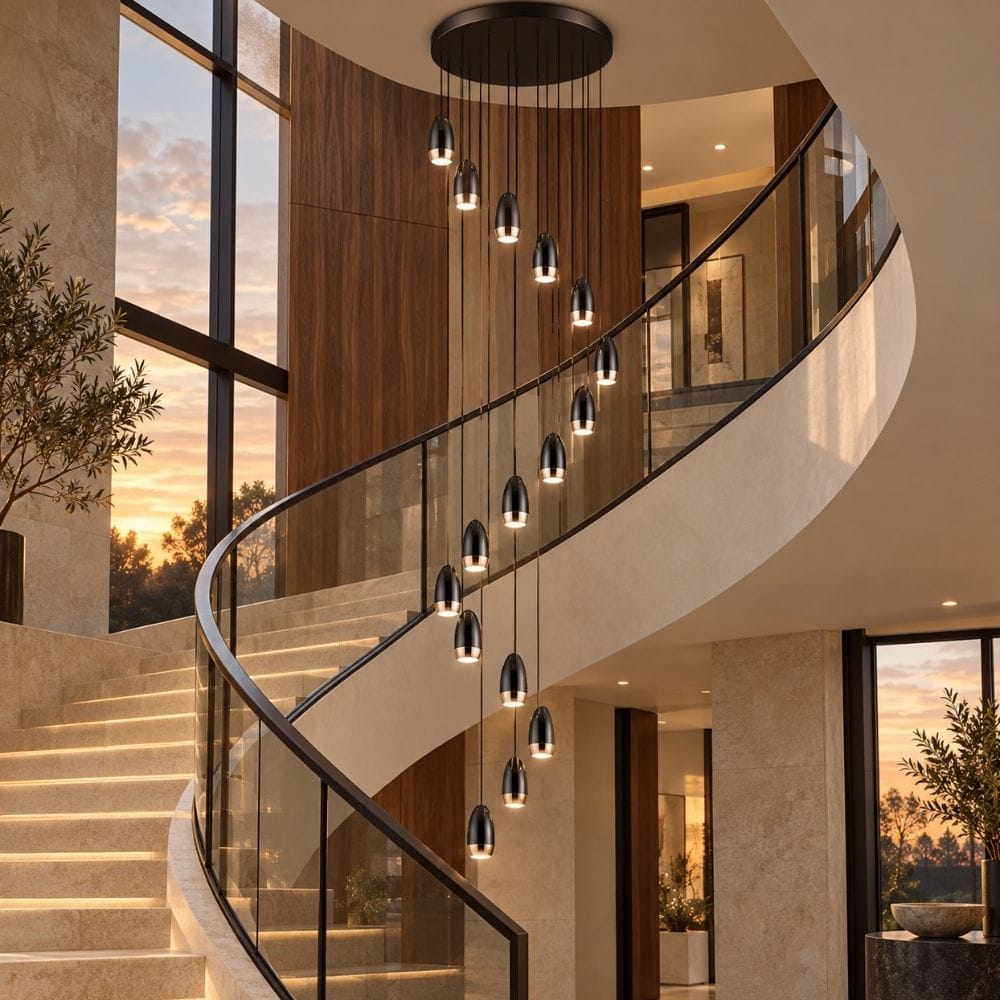

• Staircase / stairwell: 12 to 30 Heads centered in the open well; use the sling suspension to set the pendants in a descending diagonal that follows the stair.

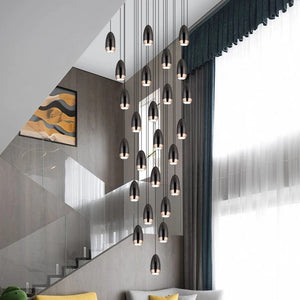

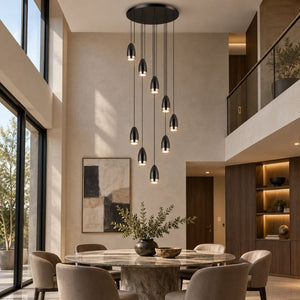

• Duplex / villa foyer: 18 to 36 Heads centered in the opening, arranged as a column or a wide spread to suit the footprint.
• High-ceiling entryway: 6 to 10 Heads with the drop shortened for 12-14 ft (3.7-4.3m) ceilings.

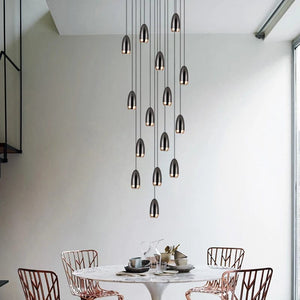

• Dining table: 8 or 10 Heads in a line or cluster over rectangular tables 60"-84" (152-213cm), pendants at a shallow stagger.

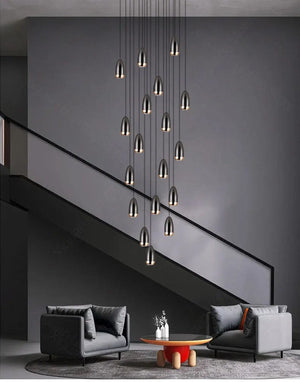

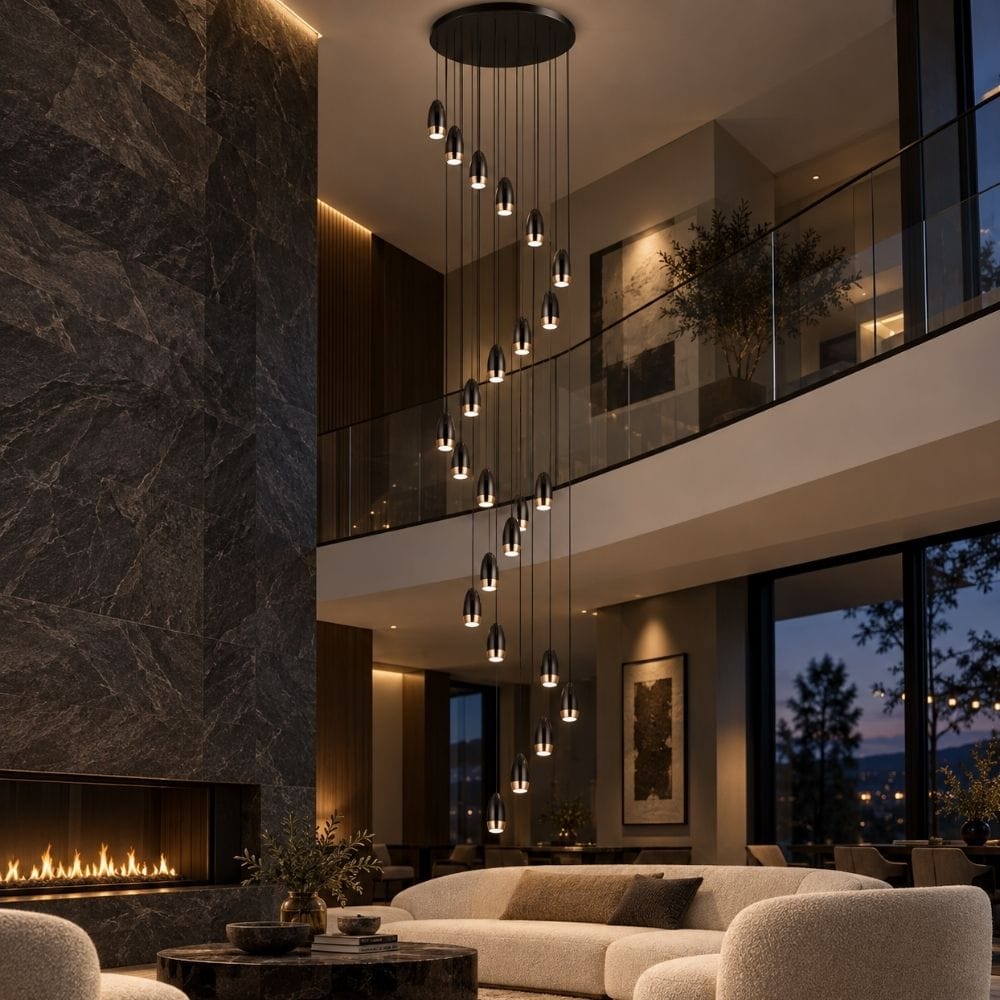

• Living room: 10 to 15 Heads over a seating group in double-height rooms of 14 ft+ (4.3m+).
• Hotel lobbies: 45 or 50 Heads as a centerpiece, or several 12 to 18 Head clusters in a row.
• Sloped ceiling: All sizes mount on angled ceilings; the wires hang vertically.

Hanging height rules by room (practical)

• Stairwell: Keep the lowest pendant at least 7 ft (2.13m) above the treads it hangs over and 6" (15cm) clear of the rail; set the highest pendants near the top third of the well.
• Foyer: Maintain 7 ft (2.13m) of floor clearance; in two-story spaces, spread the pendants so the cascade's center sits level with the second-floor line.
• Dining table: Set the lowest pendant 30-36" (76-91cm) above the tabletop with an 8 ft ceiling; add 3" (7.6cm) per additional foot.
• Living room: Keep the lowest pendant 7 ft (2.13m) above walking areas unless it hangs over a table.

Placement tips that prevent common mistakes

• Drop calculation: The listed height is the maximum with wires fully extended; every wire shortens on site, and the sling suspension allows the whole arrangement to be reshaped after hanging.
• Beam direction: Each pendant throws a narrow beam straight down; over a table or stair, keep the pendants within the footprint so the pools of light land where they are needed.
• Arrangement: Choose a tight column for narrow stairwells, a diagonal for straight stairs, and a wide staggered spread for foyers; avoid a single flat level.
• Proportion check: Keep the canopy diameter under one-third of the stairwell or foyer opening width.
• Air movement: Small pendants on fine wires sway near HVAC vents or open doors; keep the canopy 3 ft (0.9m) or more from vents.
