Kavero Motion Sensor Outdoor Wall Light

H11.8" (30 cm):

• Size: H11.8" (30 cm) × W3.1" (8 cm)
• Wattage: 8W
• Brightness: approx. 800–880 lumens

H23.6" (60 cm):

• Size: H23.6" (60 cm) × W3.1" (8 cm)
• Wattage: 15W
• Brightness: approx. 1,500–1,650 lumens

H31.5" (80 cm):

• Size: H31.5" (80 cm) × W3.1" (8 cm)
• Wattage: 20W
• Brightness: approx. 2,000–2,200 lumens

H39.4" (100 cm):

• Size: H39.4" (100 cm) × W3.1" (8 cm)
• Wattage: 24W
• Brightness: approx. 2,400–2,640 lumens

H47.2" (120 cm):

• Size: H47.2" (120 cm) × W3.1" (8 cm)
• Wattage: 29W
• Brightness: approx. 2,900–3,190 lumens

H59.1" (150 cm):

• Size: H59.1" (150 cm) × W3.1" (8 cm)
• Wattage: 36W
• Brightness: approx. 3,600–3,960 lumens

General Specifications:

• Depth from Wall: 1.8" (4.5 cm)
• Color Temperature: 3000K (Warm White)
• Light Source: Integrated LED
• Material: Iron, Acrylic
• Waterproof Rating: IP65 — suitable for outdoor use

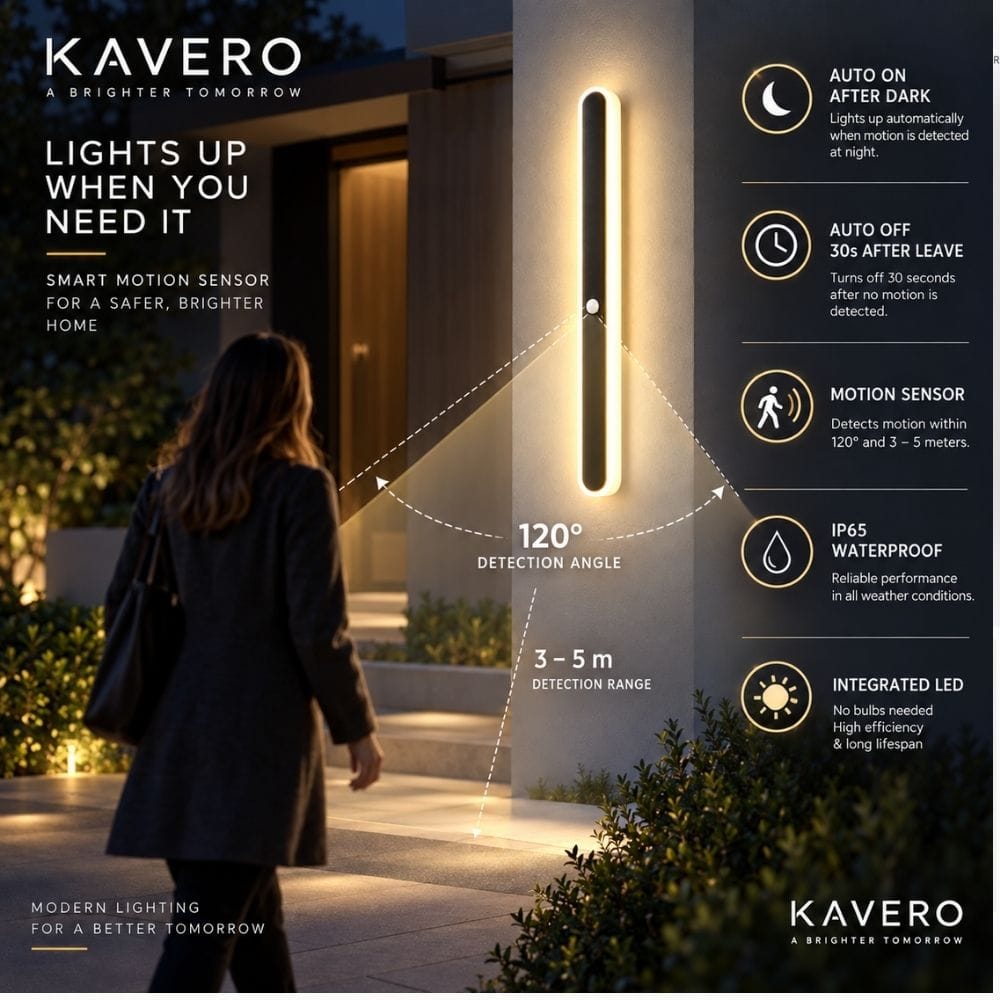

• Motion Sensor: Built-in body sensor — detection angle 120°, range 3–5 m (10–16 ft)
• Sensor Mode: Auto-off 30 seconds after people leave; stays off during daylight, activates at night or in dark weather
• Installation Type: Wall Mount
• Certifications: UL, CCC, CE, CQC, EMC, FCC, GS, LVD, PSE, RoHS, SAA, VDE
• Ideal For: Exterior walls, porch, balcony, garage, garden, entryway, pathway

• Installation: Hardwired, 85-265V AC. Licensed electrician recommended. Fix the bracket to an exterior-rated wall box or directly to the wall with the included screws, connect the wires, clip the bar onto the bracket, and seal the cable entry with exterior silicone. The fixture arrives fully assembled.
• Sensor operation: No setup needed; the sensor activates at dusk, switches the light on for motion within 10-16 ft (3-5m), and switches it off 30 seconds after the last movement. For always-on operation, ask your electrician about a bypass switch on the circuit.
• Lighting: Integrated LED, built in and rated for long service life; no bulbs to replace. Color temperature is fixed per unit at purchase.
• Cleaning: Power off at the breaker. Wipe the acrylic panel and iron body with a damp cloth and mild soap, then dry; avoid abrasive or solvent cleaners. Keep the sensor lens clean for reliable detection.
• Checkups: Re-check the bracket screws and silicone seal after the first heavy rain, then annually; test the sensor range each season.

Kavero scales by height, with light output rising in step, so match the bar length to the wall height it sits on and the area the sensor needs to cover. Then choose a frame style and a color temperature to suit the facade.

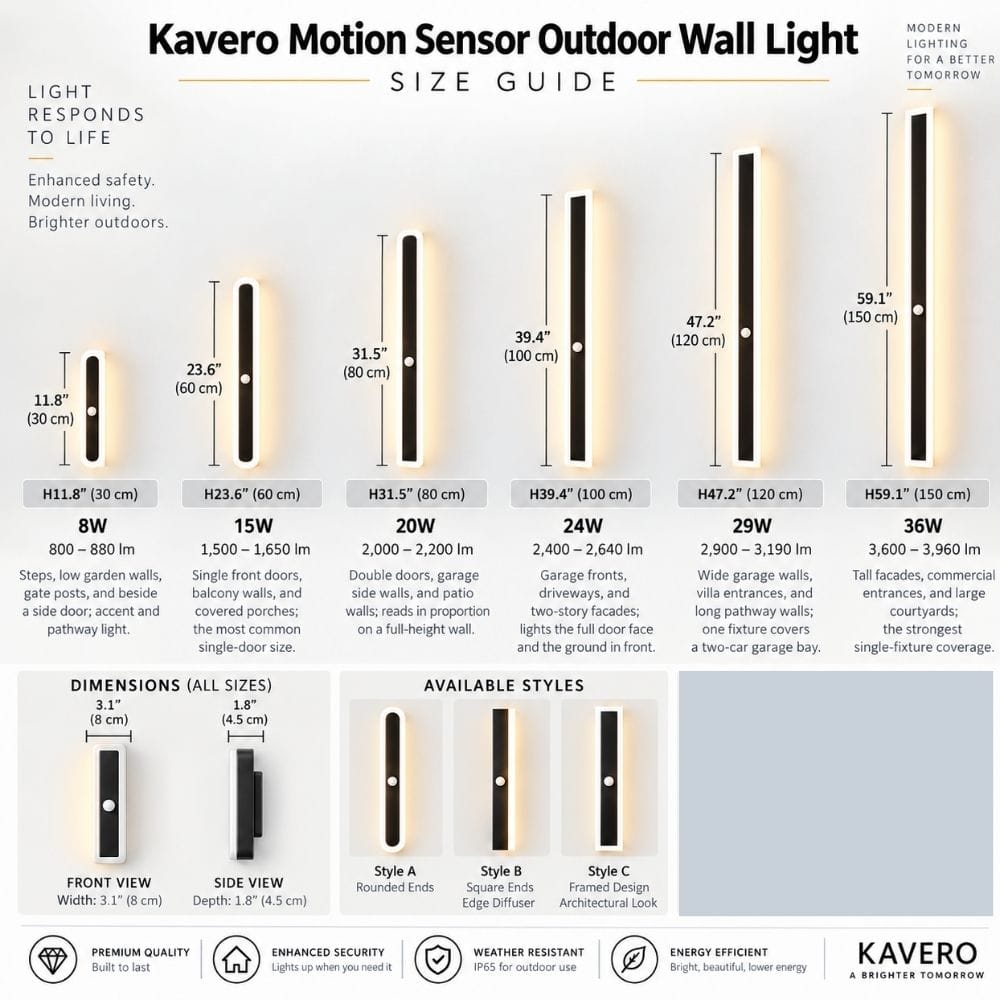

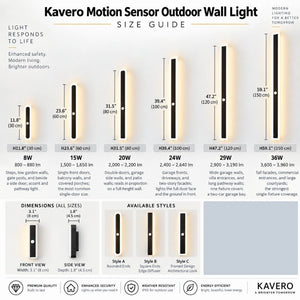

Size guide (which height do you need):

• H11.8" (30cm), 800-880 lumens: Steps, low garden walls, gate posts, and beside a side door; accent and pathway light.
• H23.6" (60cm), 1,500-1,650 lumens: Single front doors, balcony walls, and covered porches; the most common single-door size.
• H31.5" (80cm), 2,000-2,200 lumens: Double doors, garage side walls, and patio walls; reads in proportion on a full-height wall.
• H39.4" (100cm), 2,400-2,640 lumens: Garage fronts, driveways, and two-story facades; lights the full door face and the ground in front.
• H47.2" (120cm), 2,900-3,190 lumens: Wide garage walls, villa entrances, and long pathway walls; one fixture covers a two-car garage bay.
• H59.1" (150cm), 3,600-3,960 lumens: Tall facades, commercial entrances, and large courtyards; the strongest single-fixture coverage.

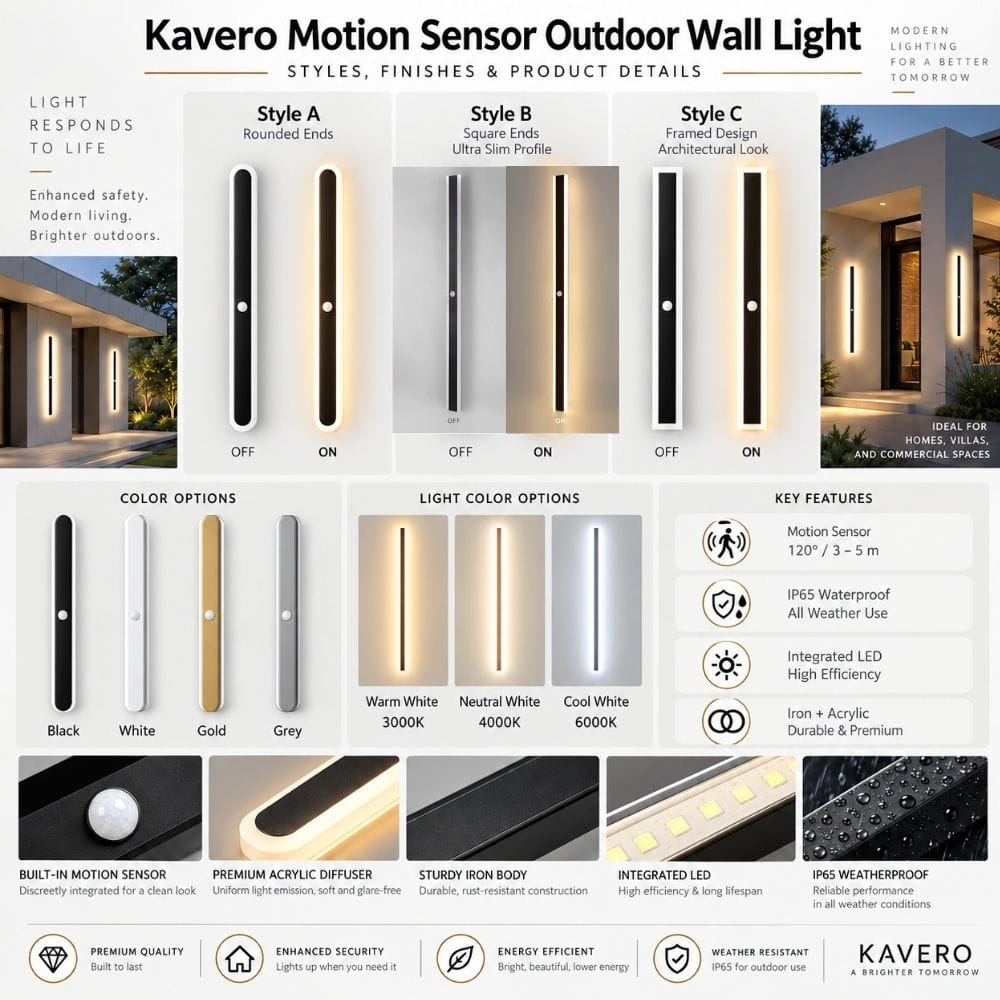

Style guide (A, B, C):

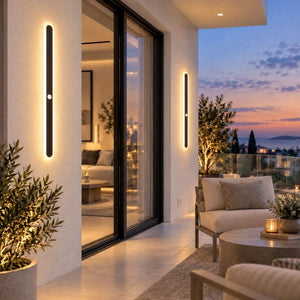

• Style A: Rounded-end bar with a full-length white diffuser edge; the softest, most residential look.

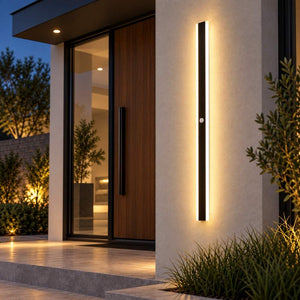

• Style B: Square-end bar with the diffuser along one long edge; suits flat modern facades and reads as a single line of light.
• Style C: Square-end bar with a thin white frame around the black body; the most architectural, sharpest-edged option.
• Choose one style per property; mixing styles on the same wall reads as an error.

Light color guide (which color temperature to choose):

• Warm White (3000K): The default for homes; flatters brick, stucco, wood, and stone and matches most porch and landscape lighting. Choose it for front entries, patios, and balconies.
• Neutral White (4000K): Clean, balanced light for driveways, side yards, and grey or white modern facades; a good middle ground when the facade mixes materials.
• Cool White (6000K): Brightest perceived light for security-first placements such as garage aprons, rear walls, and commercial entrances; reads harsh on warm-toned materials.
• Matching: Keep all exterior fixtures at one color temperature; a warm porch bar beside a cool garage bar is the most visible outdoor lighting mistake.

By placement:

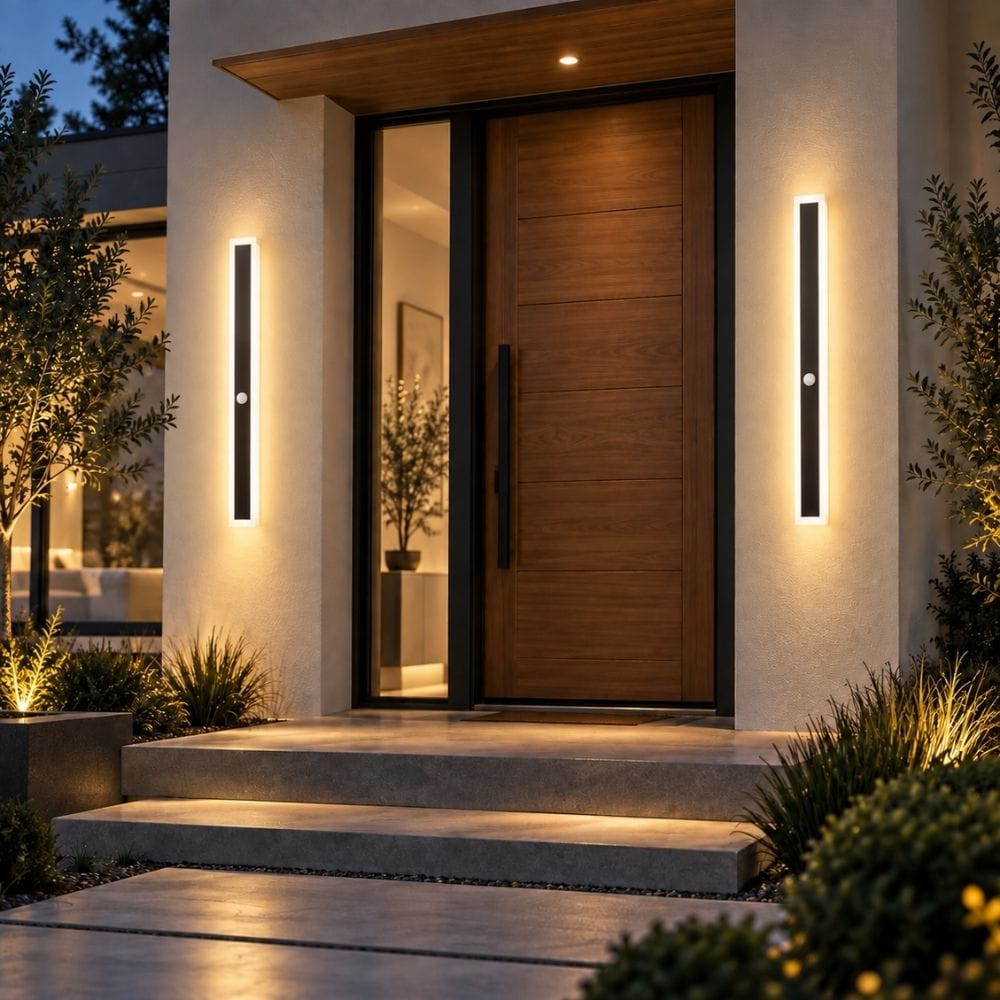

• Front entryway: A pair of H23.6" (60cm) or H31.5" (80cm) flanking the door; the sensor on either fixture switches its own bar on as someone approaches.

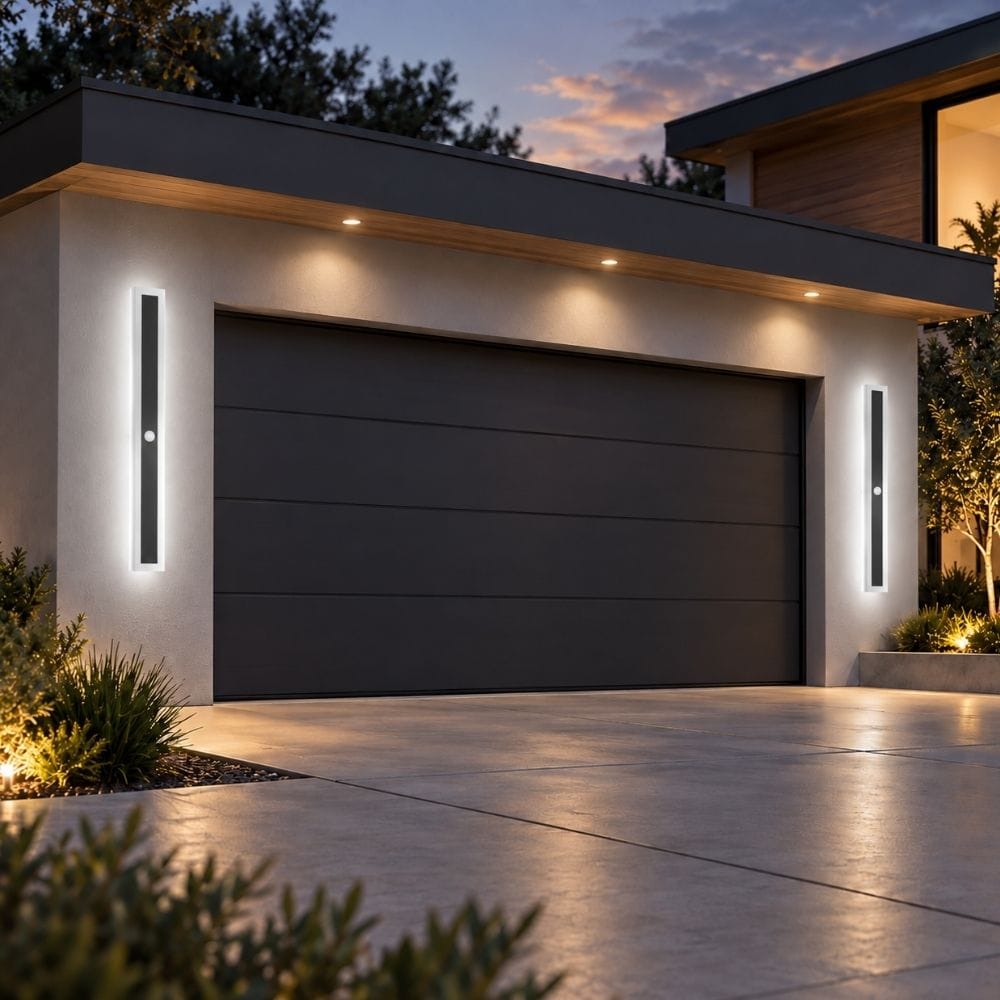

• Garage: One H39.4" (100cm) or H47.2" (120cm) per bay, or a pair on either side of the door; the 10-16 ft (3-5m) range picks up a car pulling in.

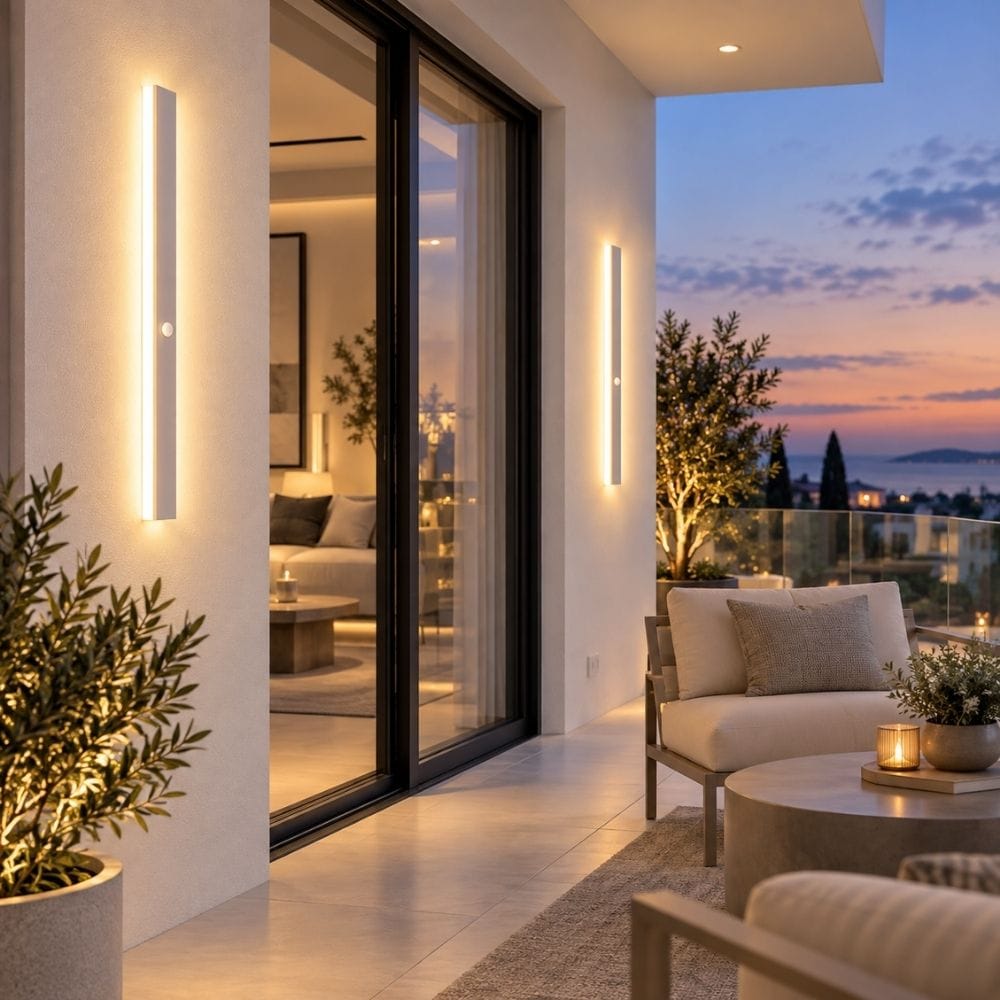

• Balcony: One H23.6" (60cm) or H31.5" (80cm) beside the balcony door; the sensor keeps it off until you step out.

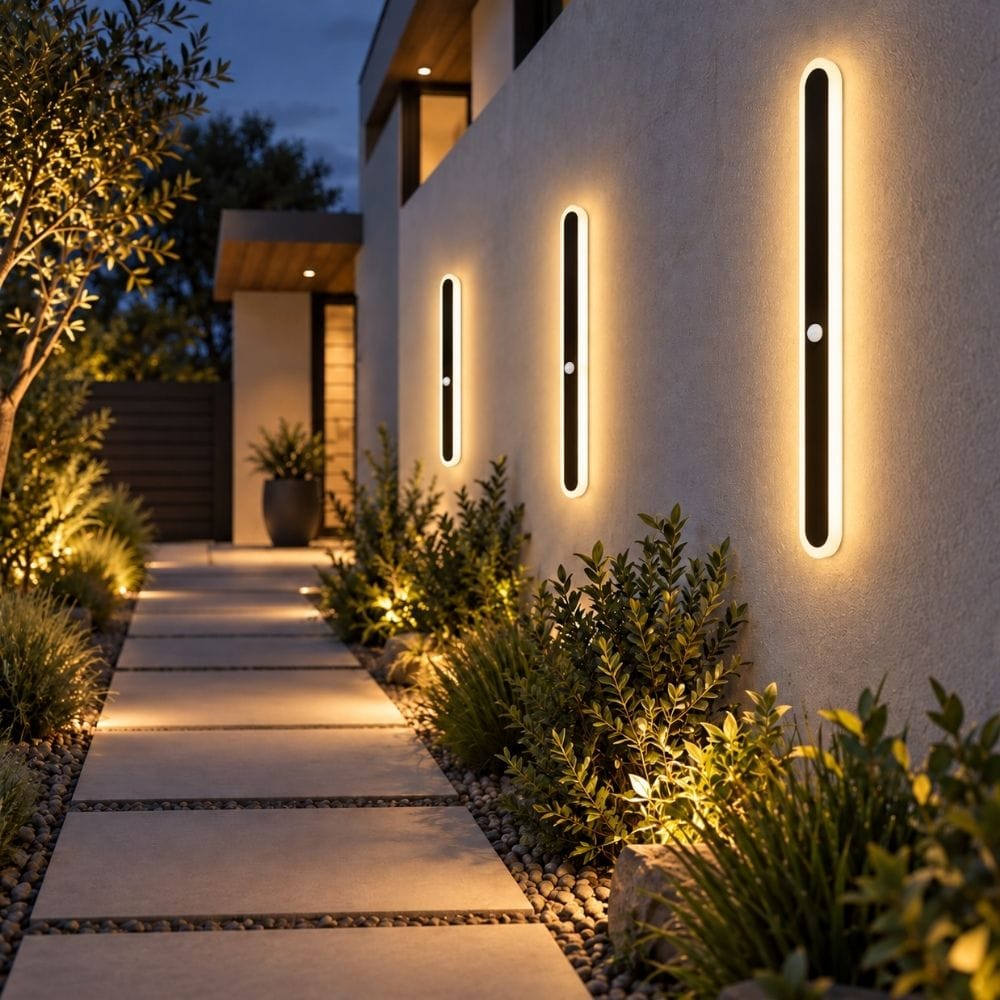

• Garden / pathway wall: H11.8" (30cm) or H23.6" (60cm) units spaced 10-12 ft (3-3.7m) apart so each sensor zone overlaps the next.
• Side yard / rear wall: H31.5" (80cm) or H39.4" (100cm) at corners and every 12-15 ft (3.7-4.6m) along the wall for security coverage.

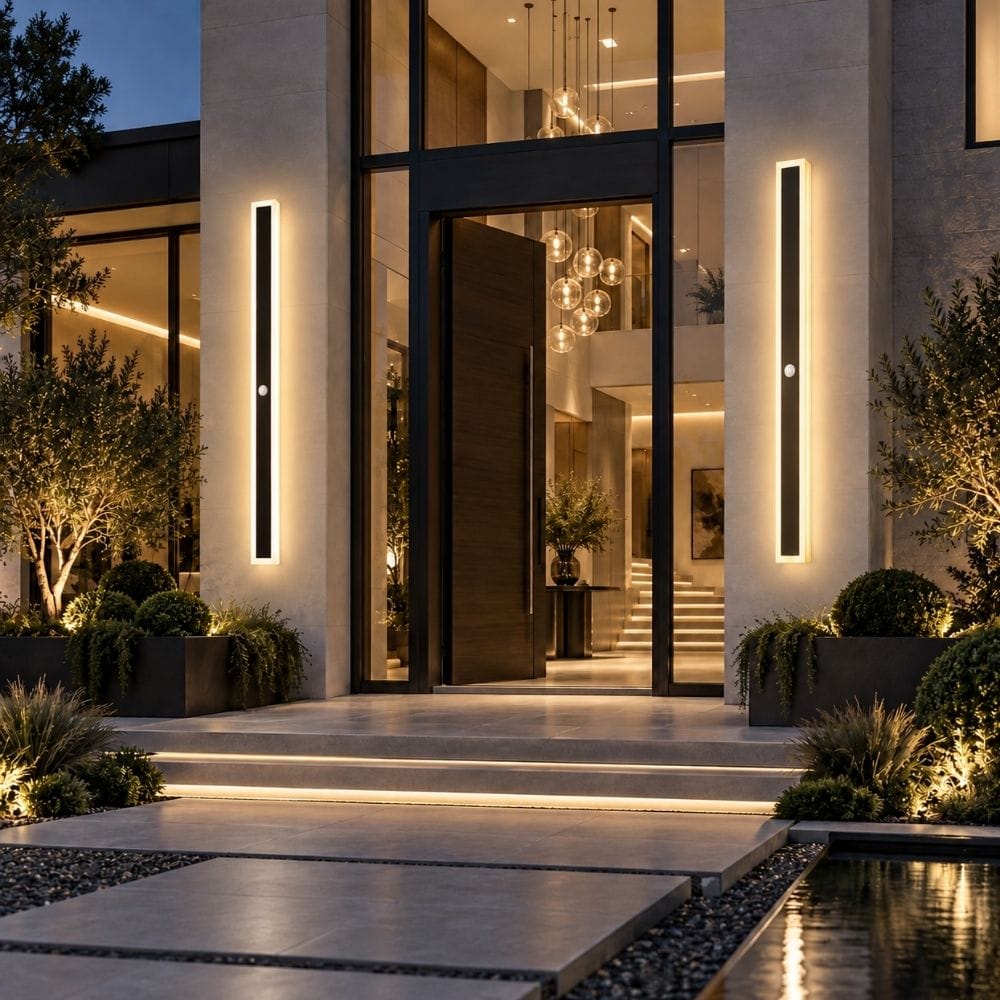

• Villa / commercial entrance: H47.2" (120cm) or H59.1" (150cm) flanking the main door on a tall facade.

Mounting height rules (practical)

• Beside a door: Center the fixture 60"-72" (152-183cm) above the porch surface; on the H47.2" (120cm) and H59.1" (150cm), align the bar's top with the door head.
• Garage / driveway: Center the fixture 72"-84" (183-213cm) above the driveway so the sensor sees over a parked car.
• Pathway / garden wall: Center the H11.8" (30cm) at 36"-48" (91-122cm); center the H23.6" (60cm) at 48"-60" (122-152cm).
• Sensor height: The sensor lens sits at the bar's midpoint and detects best at 40"-72" (102-183cm) above ground; mount taller bars so the midpoint lands in that band.
• Clearance: Keep 6" (15cm) or more between the bar and door trim, downpipes, or shutters.

Placement tips that prevent common mistakes

• Sensor direction: The 120° zone fans out perpendicular to the wall; mount the fixture facing the approach path, not sideways along it, so people walk into the zone rather than along its edge.
• False triggers: Keep the sensor away from swaying shrubs, HVAC exhaust, and roads within 16 ft (5m); heat and movement trip the sensor.
• Daylight cut-off: The fixture stays off in daylight by design; under a deep porch roof it may switch on in heavy shade. Mount it where it sees the sky if that matters.
• Coverage: Space fixtures at about two times the mounting height for an even wall wash; for sensor coverage along a path, overlap zones by 3 ft (0.9m).
• Wall box: The 1.8" (4.5cm) depth means the fixture sits almost flush; the mounting bracket screws to the wall and the bar clips over it, so mark the bracket at the bar's center.
• Surface: On lap siding or rough stone, use a mounting block so the bar sits flat and the diffuser edge stays even.
