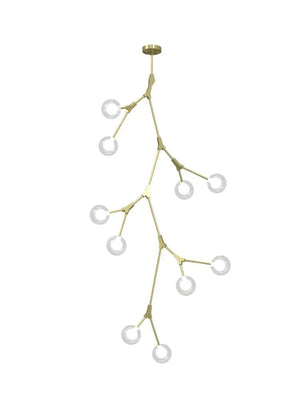

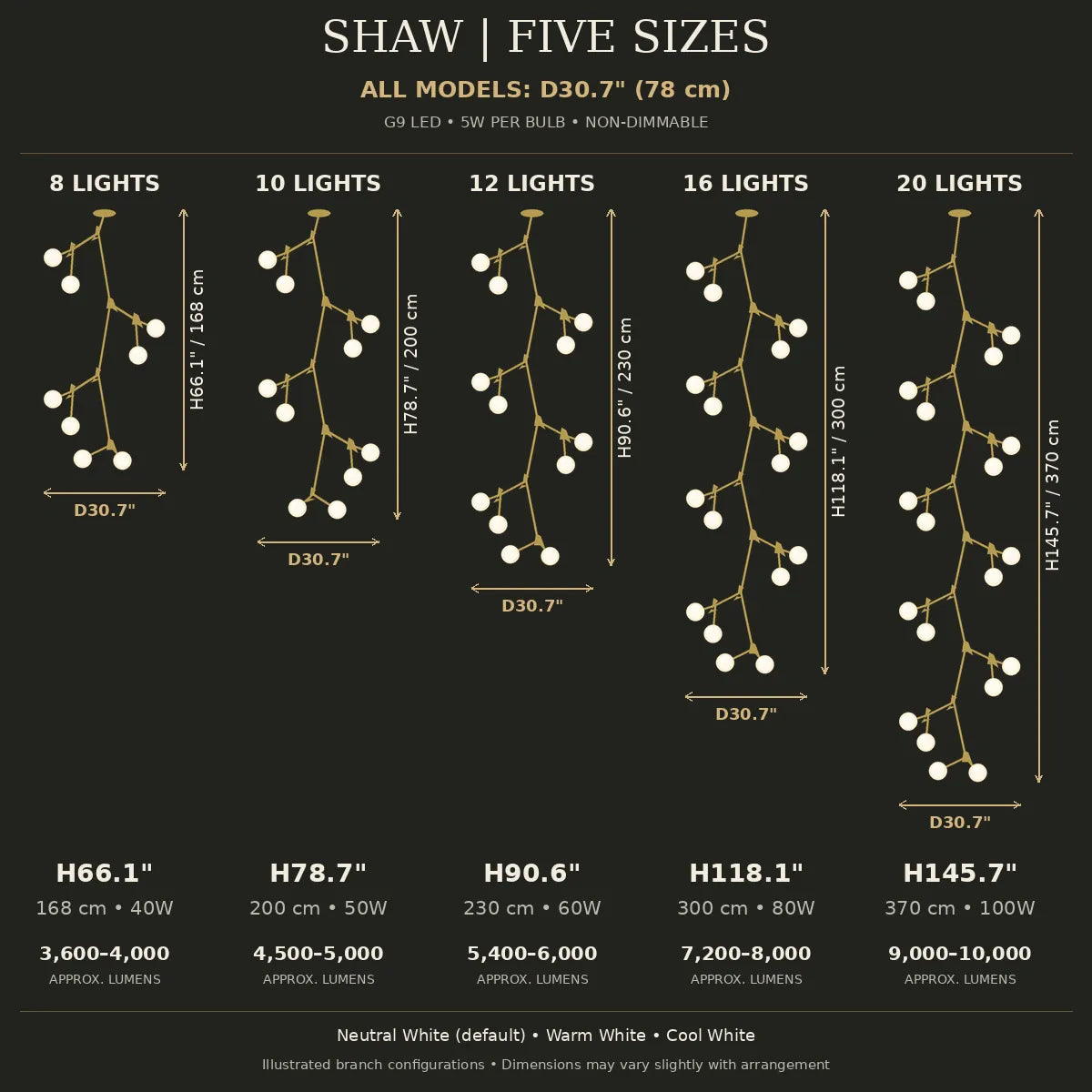

Shaw Branch Staircase Chandelier

8 Lights:

• Size: D30.7" (78 cm) × H66.1" (168 cm)
• Wattage: 40W
• Brightness: approx. 3,600–4,000 lumens

10 Lights:

• Size: D30.7" (78 cm) × H78.7" (200 cm)
• Wattage: 50W
• Brightness: approx. 4,500–5,000 lumens

12 Lights:

• Size: D30.7" (78 cm) × H90.6" (230 cm)
• Wattage: 60W
• Brightness: approx. 5,400–6,000 lumens

16 Lights:

• Size: D30.7" (78 cm) × H118.1" (300 cm)
• Wattage: 80W
• Brightness: approx. 7,200–8,000 lumens

20 Lights:

• Size: D30.7" (78 cm) × H145.7" (370 cm)
• Wattage: 100W
• Brightness: approx. 9,000–10,000 lumens

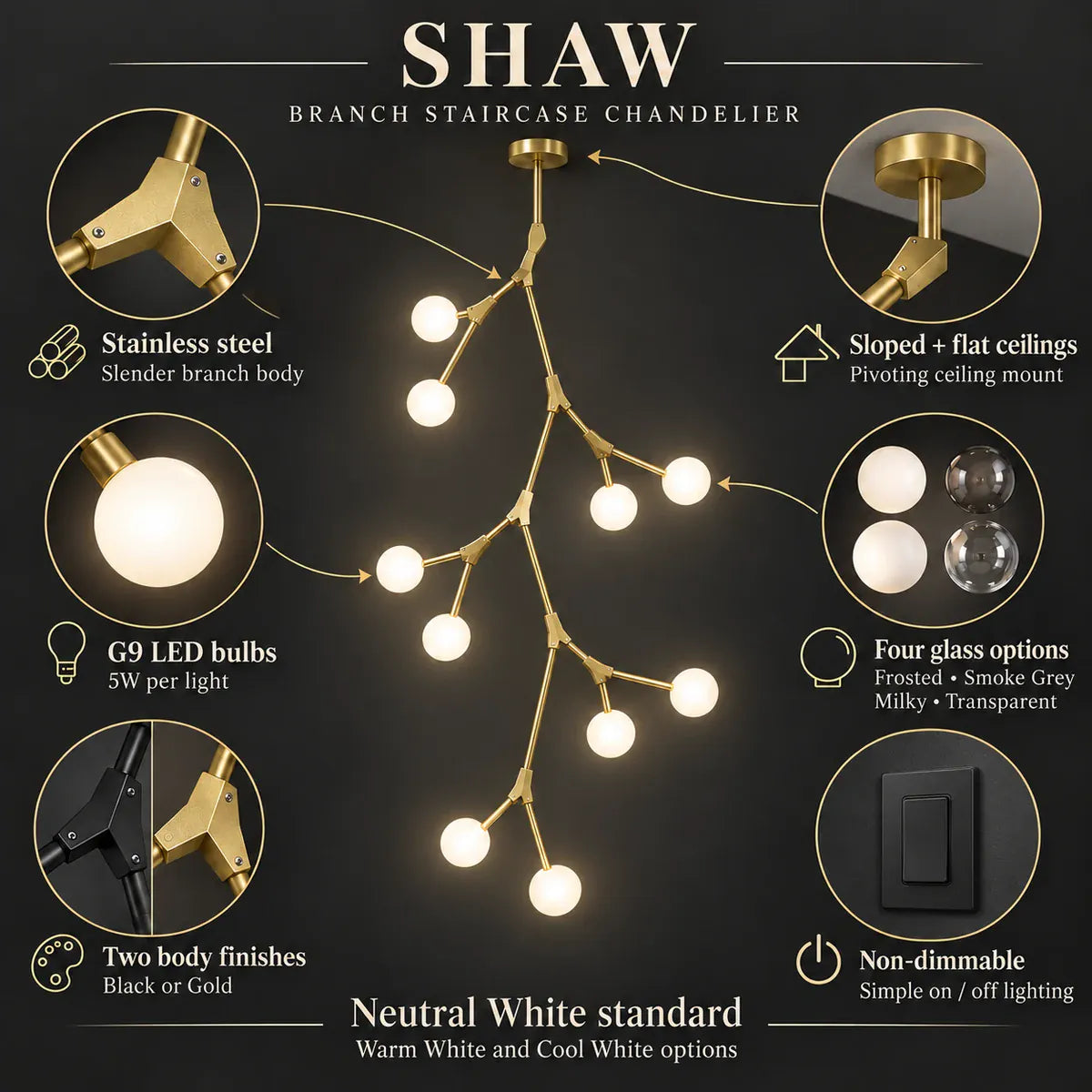

General Specifications:

• Light Source: G9 LED Bulbs (5W per bulb)
• Light Color Options: Neutral White (default), Warm White, Cool White
• Dimmable: No
• Body Material: Stainless Steel
• Shade Material: Glass

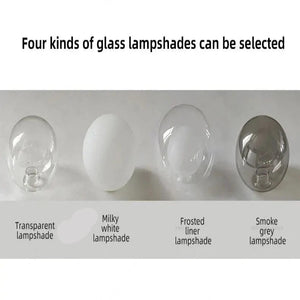

• Glass Color Options: Frosted, Smoke Grey, Milky, Transparent

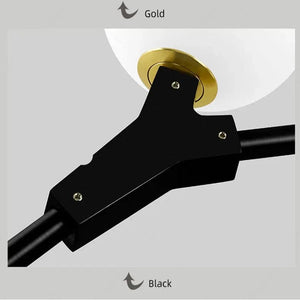

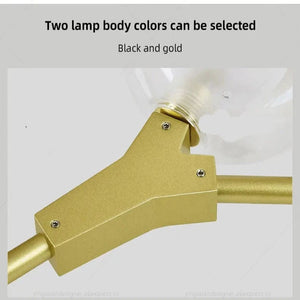

• Color Options: Black, Gold
• Size Tolerance: ±3.1" (8 cm), as the branches are adjustable
• Certifications: UL, cUL, CSA, ETL, CE, UKCA, RCM, SAA, FCC, CCC, CQC, EMC, GS, LVD, PSE, RoHS, VDE

• Installation: Hardwired. Licensed electrician recommended. Mount the canopy to a junction box rated for the fixture weight and fixed into ceiling framing; the branch hangs rigidly, so the box must be secure and plumb. Two people and scaffold or lift access are needed for the 16 and 20 Lights.
• Branch sections: The branch ships in sections that assemble in order; fit the sections and check the globe positions before energizing.
• Lighting: 5W G9 LED bulbs in Neutral, Warm, or Cool White as ordered; replace with LED G9 of the same wattage and color temperature. Non-dimmable; use a standard on/off switch.
• Cleaning: Power off at the breaker. Wipe the glass globes with a dry microfiber cloth; for smudges, use a lightly damp cloth and dry immediately. Wipe the branch with a soft dry cloth; avoid abrasive or acidic cleaners on plated finishes. Clean tall installations from a landing or with an extension pole.
• Checkups: Re-check the canopy fixing, section joints, and globe seating one week after installation, then annually.

Shaw scales by height and globe count with the same 30.7" (78cm) spread across every size, so ceiling height sets the size and the stairwell only needs to be about 4 ft (1.2m) wide. The globes sit at set positions along the branches, with a ±3.1" (8cm) size tolerance from the twig angles, so plan clearances with that margin.

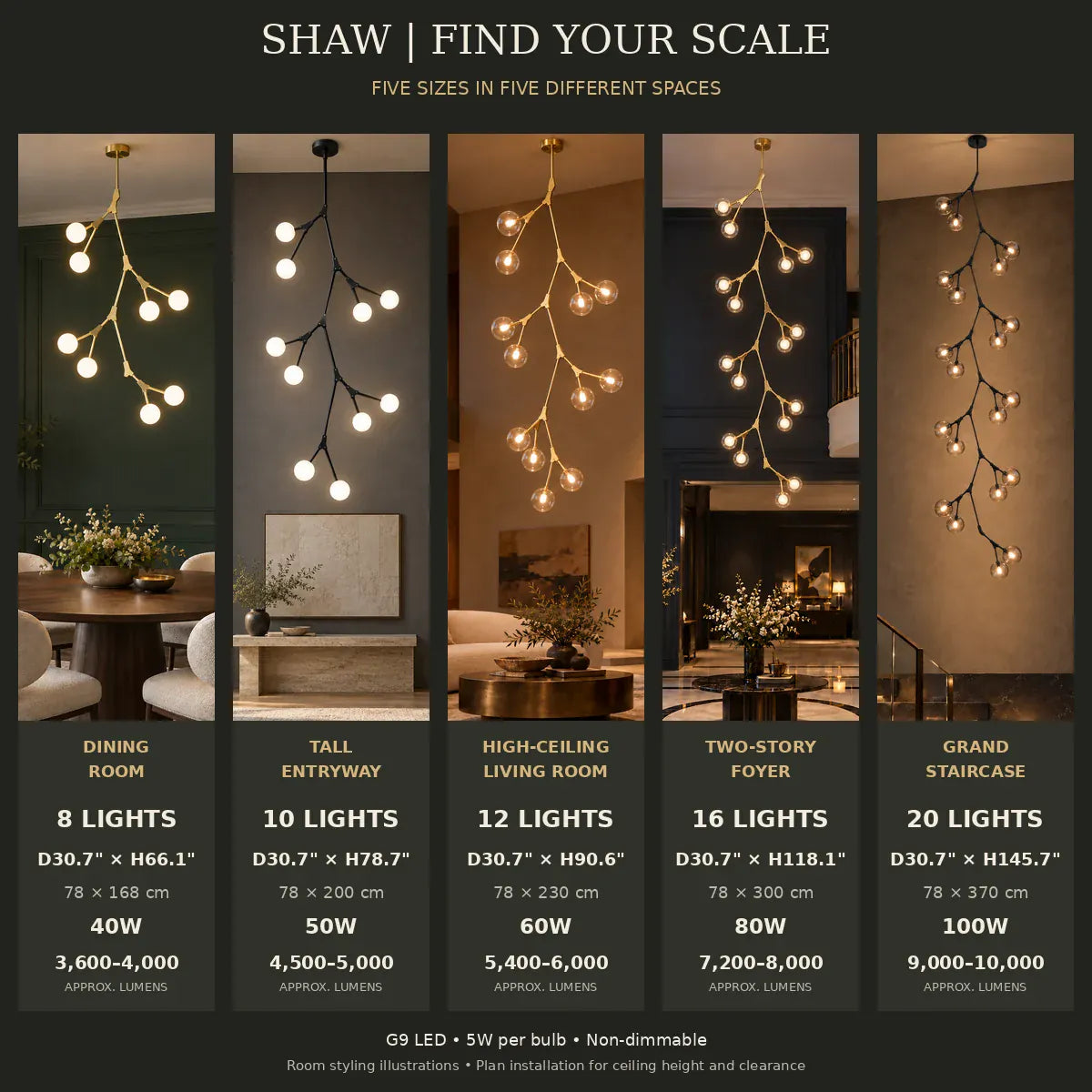

Light count guide (which height do you need):

• 8 Lights, 66.1" (168cm) height, 3,600-4,000 lumens: Single-story stairwells, entryways, and living rooms with 12-14 ft (3.7-4.3m) ceilings.
• 10 Lights, 78.7" (200cm) height, 4,500-5,000 lumens: Entry halls and living rooms with 13-15 ft (4-4.6m) ceilings.
• 12 Lights, 90.6" (230cm) height, 5,400-6,000 lumens: Two-story stairwells with 14-16 ft (4.3-4.9m) ceilings.

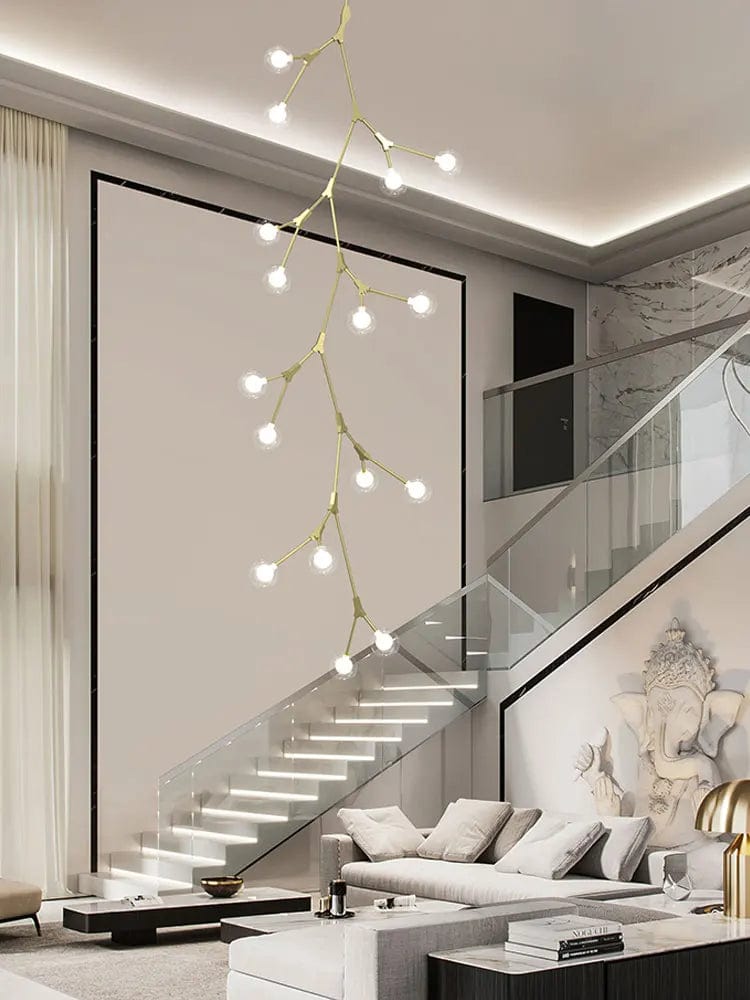

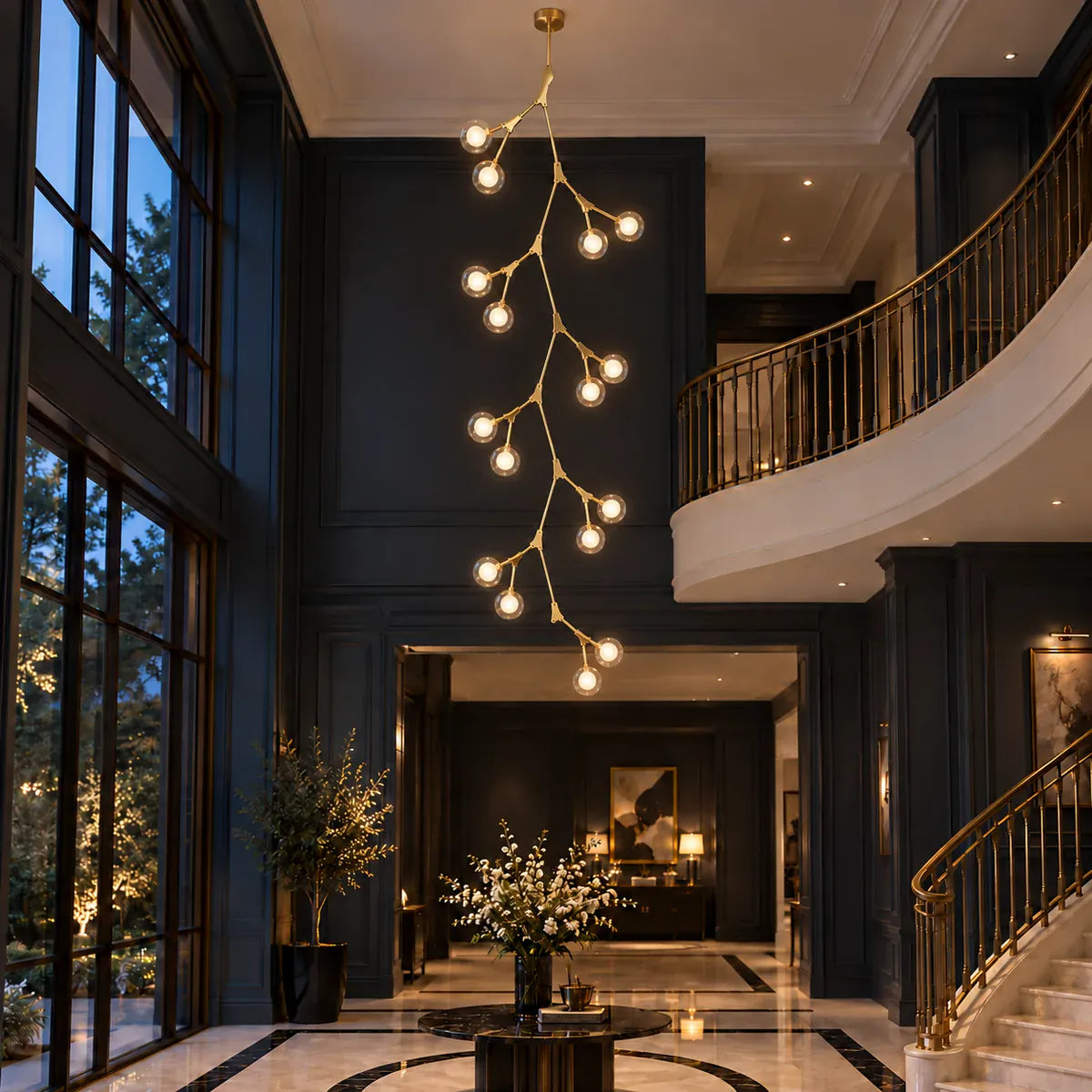

• 16 Lights, 118.1" (300cm) height, 7,200-8,000 lumens: Two-story foyers and stairwells with 17-20 ft (5.2-6.1m) ceilings, as in the product photo.
• 20 Lights, 145.7" (370cm) height, 9,000-10,000 lumens: Villa entrance halls and three-story stairwells with 20 ft+ (6.1m+) ceilings.

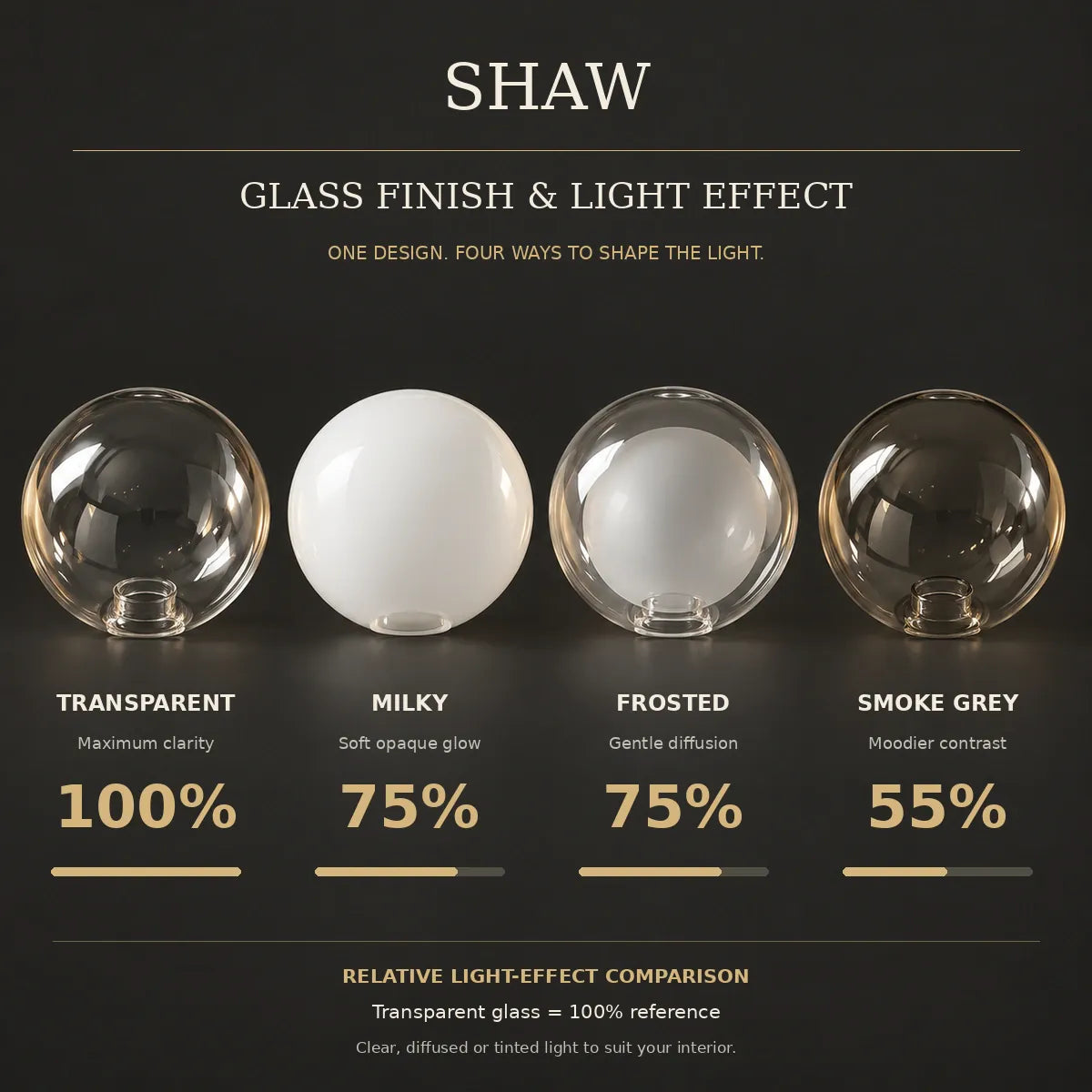

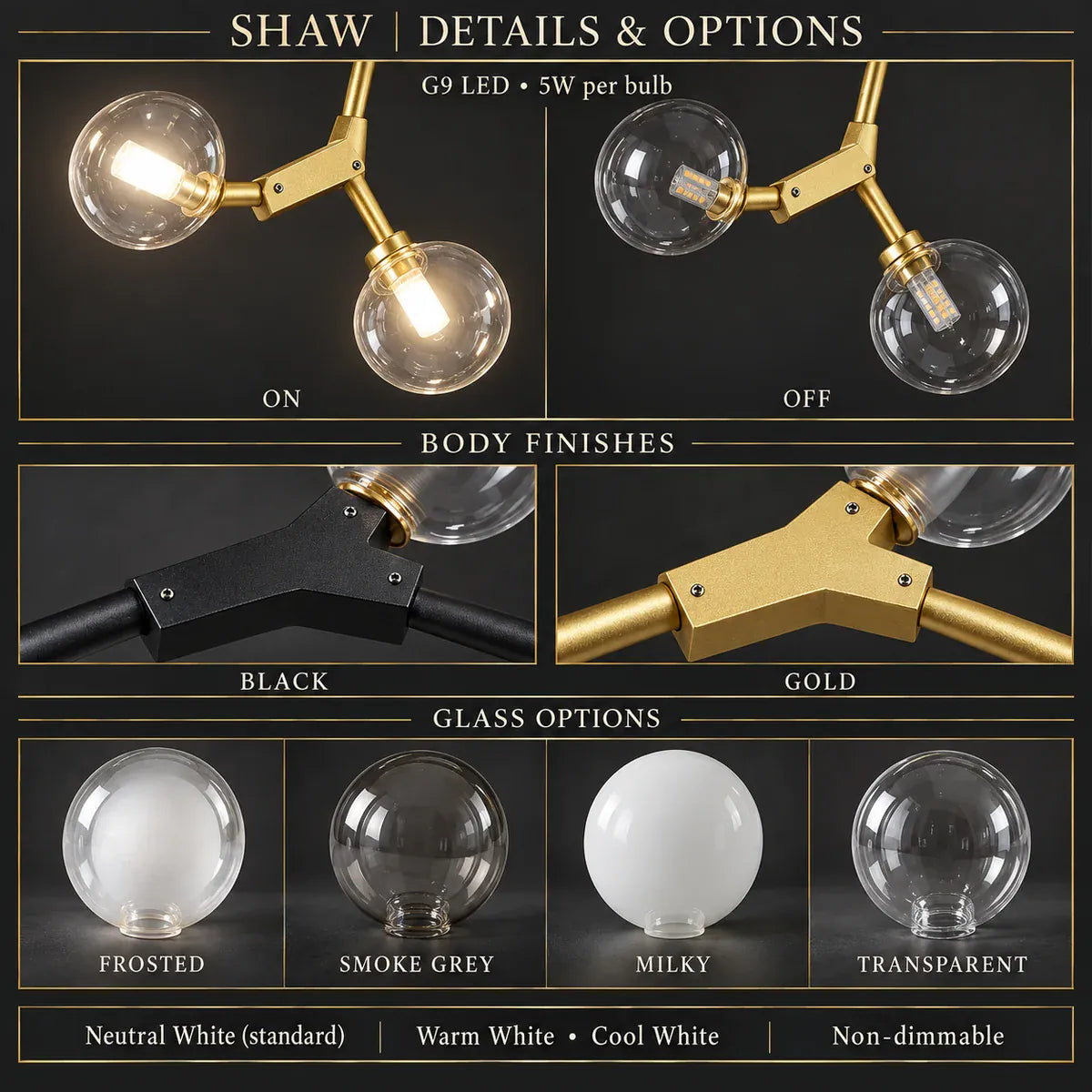

Finish and glass guide:

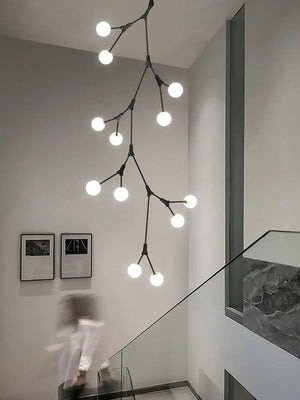

• Black branch: Reads as a graphic line against pale walls; suits modern, monochrome, and Scandinavian interiors.

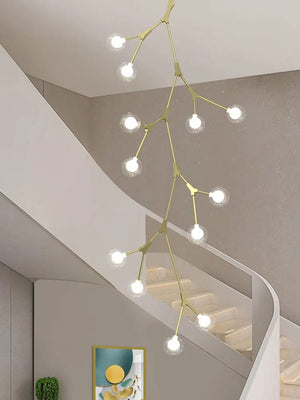

• Gold branch: Warms cream, wood, and marble interiors and matches brass rails, as in the product photo.
• Frosted glass: Even, glare-free glow with a soft edge; the default look.
• Milky white glass: Opaque white globes that read as solid orbs when off; suits minimalist rooms.
• Smoke grey glass: Moodier tint that softens the light points; pairs with the black branch.
• Transparent glass: The brightest option; the G9 bulb is visible, so choose a decorative filament-style bulb.

Light color guide (which color temperature to choose):

• Neutral White (standard): Balanced light for stairwells and foyers used through the day; suits mixed-material interiors and either branch finish.
• Warm White (on request): Homes with wood, cream, and brass; pairs with the gold branch and frosted or milky glass.
• Cool White (on request): Modern grey or white interiors and commercial spaces; pairs with the black branch and smoke or transparent glass.
• Matching: Keep the globes at the same color temperature as sconces and recessed lights visible from the staircase.

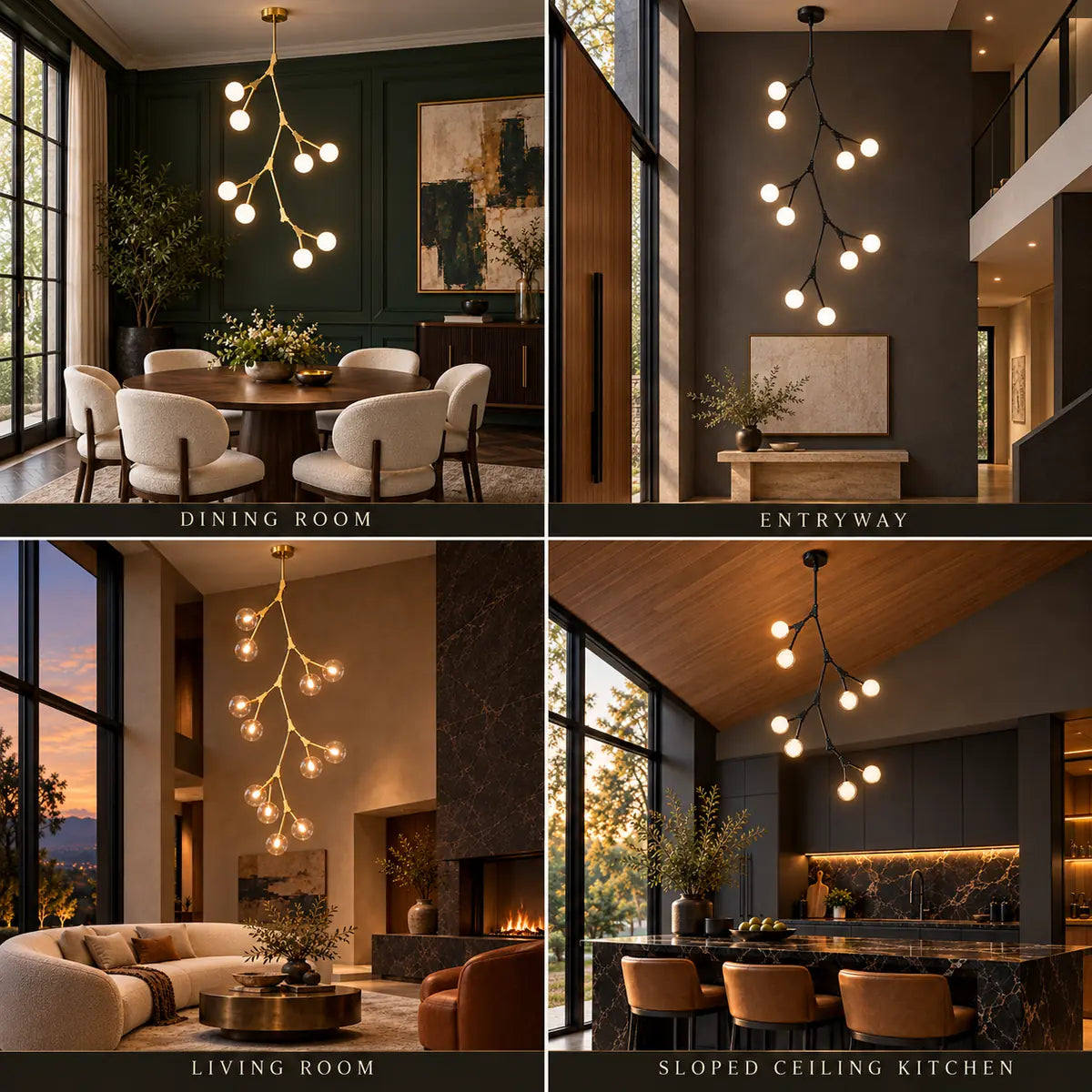

By placement:

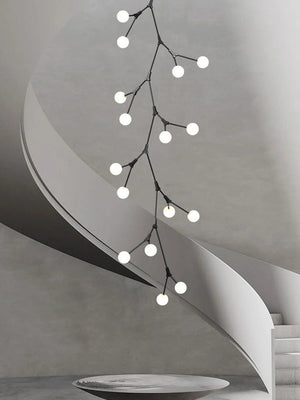

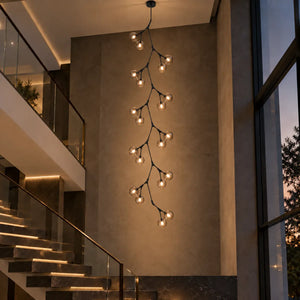

• Staircase / stairwell: 12 to 20 Lights centered in the open well, positioned so the globes stay clear of the rail at every turn.

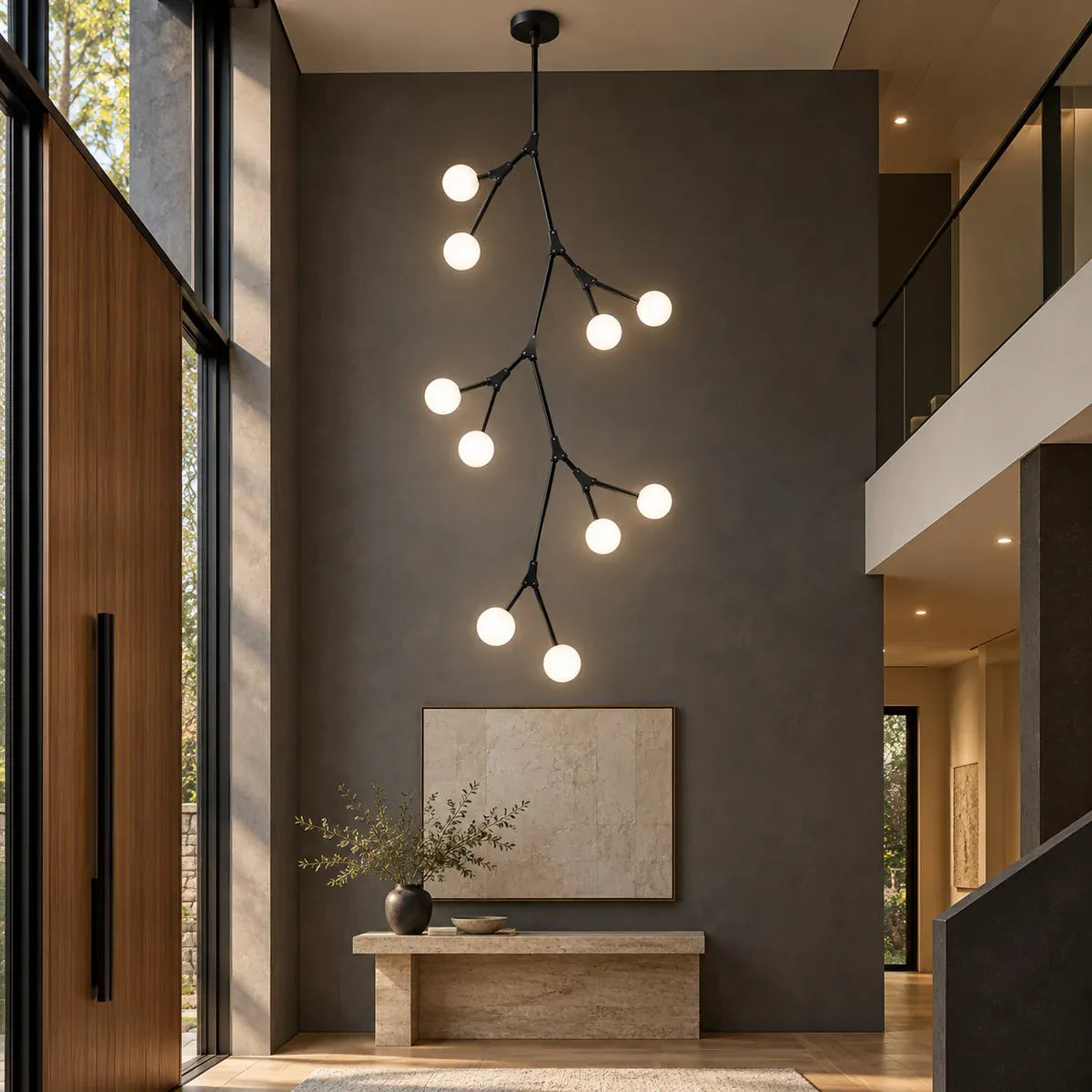

• Two-story foyer: 16 or 20 Lights centered in the opening; the branch reads from the entry and the landing.

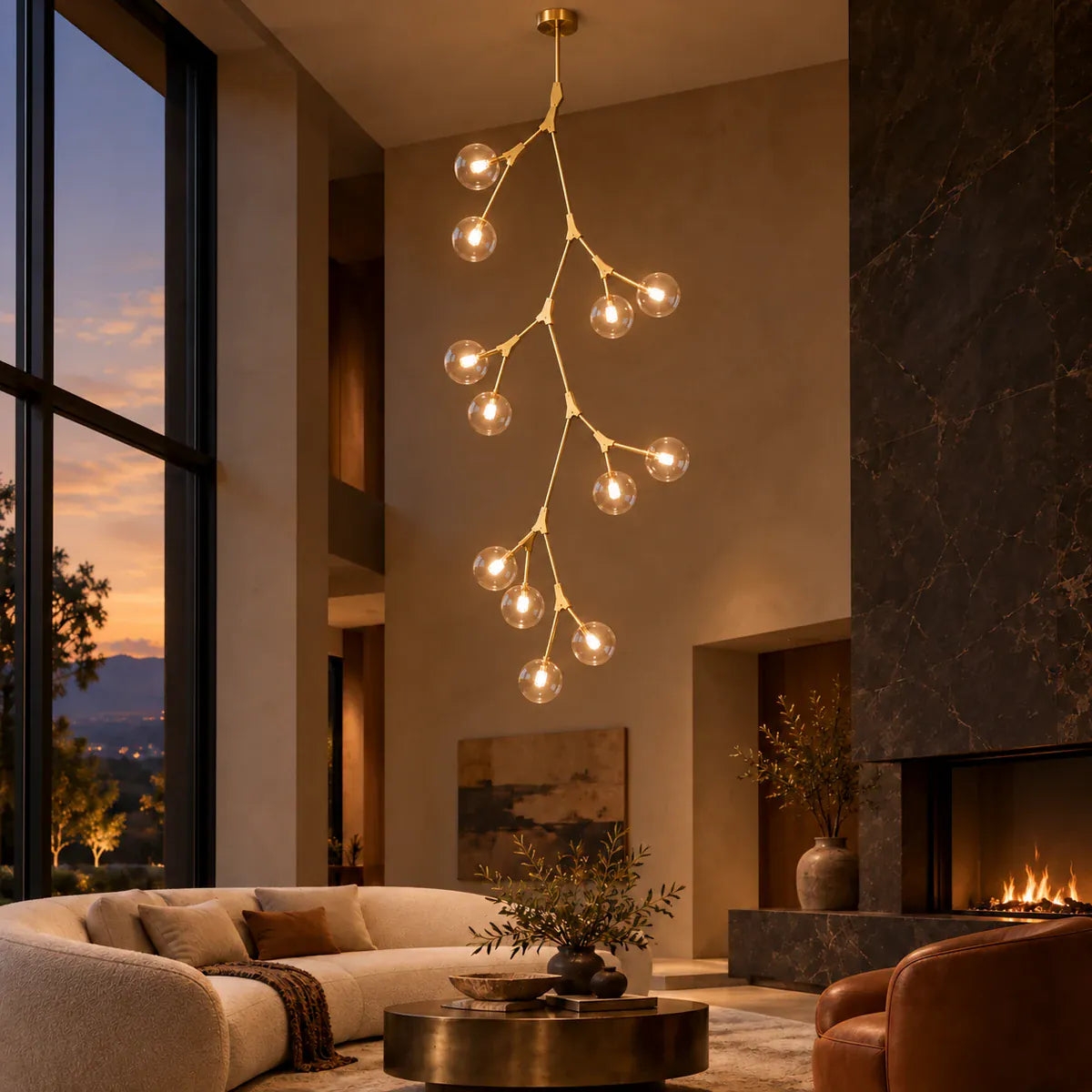

• Double-height living room: 8 to 12 Lights beside a stair or over a seating group in rooms with 12 ft+ (3.7m+) ceilings.
• High-ceiling entryway: 8 or 10 Lights in entries with 12-15 ft (3.7-4.6m) ceilings.
• Standard 8-10 ft ceilings: Not suitable; the shortest size is 66.1" (168cm) tall.

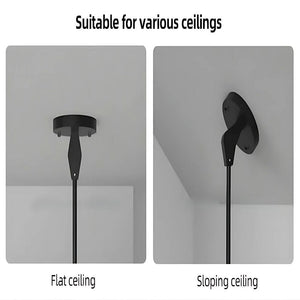

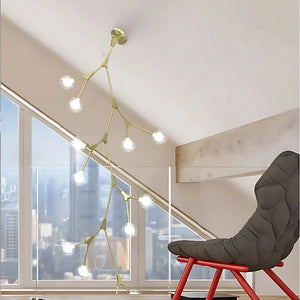

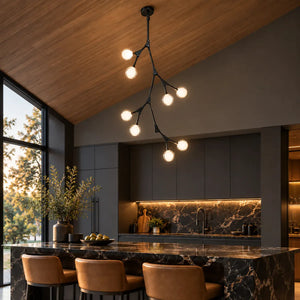

• Sloped ceiling: All sizes mount on angled ceilings; the branch hangs vertically.

Hanging height rules by room (practical)

• Stairwell: Keep the lowest globe at least 7 ft (2.13m) above the treads beneath it and 6" (15cm) clear of the rail.
• Foyer: Maintain 7 ft (2.13m) of floor clearance; in two-story spaces, position the branch's middle near the second-floor line.
• Living room: Keep the lowest globe 7 ft (2.13m) above walking areas unless it hangs over a table.

Placement tips that prevent common mistakes

• Drop calculation: The branch hangs to the listed height; ceiling height minus fixture height must leave 7 ft (2.13m). A 16 ft (4.9m) ceiling takes the 12 Lights with about 101" (257cm) to spare.
• Width check: Keep the 30.7" (78cm) spread 12" (30cm) clear of walls and rails, and allow the ±3.1" (8cm) tolerance when measuring a tight well.
• Orientation: The branch is asymmetric; decide which face addresses the entry before the electrician sets the canopy, since the fixture cannot rotate after mounting.
• Bulb choice: With transparent glass, choose a clear filament-style G9 LED; with frosted, milky, or smoke glass, any G9 LED of the right wattage.
• Daylight: Position the branch where windows reach it; the glass globes read as a sculpture even when switched off.
